Features

  • Cross tube style base and rod mounts
  • 3000 PSI Heavy Duty Type
  • Cold drawn (high impact) 75,000 min.yield D.O.M. tubing
  • Ground & polished, hard chrome plated rods (75,000 min. yield)
  • Welded style construction certified to A.W.S. B2.1
  • Internally threaded head design with buttress threads
  • Highest quality seal configurations compatible with petroleum base fluids
  • Increased bearing length on both head & piston
  • Ductile iron head gland & piston
  • Piston utilizes wear bearings
  • Nylon inserted lock nut
  • Standard paint; black primer

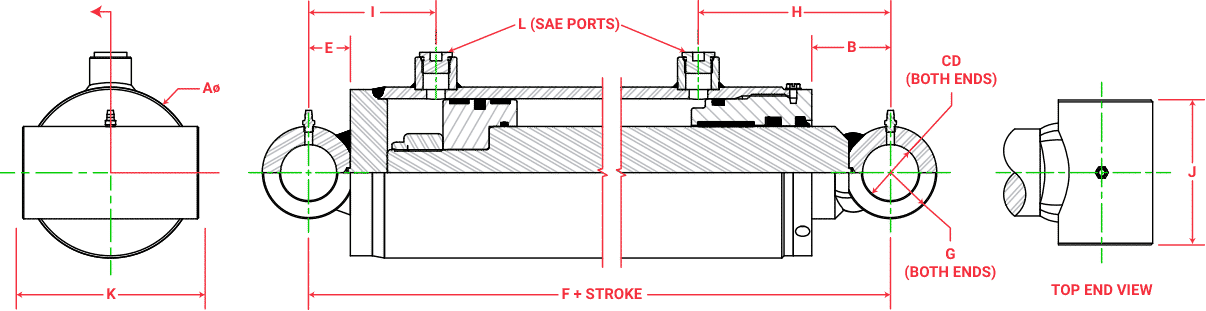

700 Series Cylinder Diagram

Bore Rod A B CD E F G H I J K L Part #
3.00 1.75 3.50 1.50 1.000 .81 9.00 .88 3.88 2.75 2.75 3.75 #6 704-**.**
3.00 2.00 3.50 1.50 1.000 .81 9.00 .88 3.88 2.75 2.75 3.75 #6 706-**.**
3.50 1.75 4.00 1.56 1.250 .88 9.25 1.00 4.00 2.88 3.25 4.25 #8 710-**.**
3.50 2.00 4.00 1.62 1.250 .88 9.50 1.00 4.06 3.06 3.25 4.25 #8 712-**.**
4.00 2.00 4.62 2.12 1.500 1.12 11.00 1.25 5.19 3.44 3.00 4.75 #8 716-**.**
4.00 2.50 4.62 2.12 1.500 1.12 11.00 1.25 5.19 3.44 3.00 4.75 #8 718-**.**
4.00 3.00 4.62 2.00 1.500 1.12 11.50 1.25 5.81 3.69 4.25 4.75 #8 720-**.**
4.50 2.00 5.12 1.88 1.500 1.12 11.00 1.25 5.00 3.62 3.00 5.50 #10 724-**.**
4.50 2.50 5.12 2.12 1.500 1.12 11.50 1.25 5.25 3.88 3.00 5.50 #10 726-**.**
4.50 3.00 5.12 2.12 1.500 1.12 11.50 1.25 5.25 3.88 4.25 5.50 #10 728-**.**
4.50 3.50 5.12 2.12 1.500 1.12 11.75 1.25 6.00 3.75 4.25 5.50 #10 730-**.**
5.00 2.00 5.62 2.25 1.750 1.25 11.25 1.38 5.19 3.69 3.25 6.00 #12 734-**.**
5.00 2.50 5.62 2.12 1.750 1.25 12.00 1.38 5.50 3.94 3.25 6.00 #12 736-**.**
5.00 3.00 5.62 2.12 1.750 1.25 12.00 1.38 5.50 3.94 4.75 6.00 #12 738-**.**
5.00 3.50 5.62 2.00 1.750 1.25 11.75 1.38 5.38 3.81 4.75 6.00 #12 740-**.**
5.00 4.00 5.62 2.12 1.750 1.25 12.00 1.38 6.06 3.94 4.75 6.00 #12 742-**.**
5.50 2.50 6.12 2.19 1.750 1.25 12.25 1.38 5.56 4.00 3.25 7.00 #12 746-**.**
5.50 3.00 6.12 2.06 1.750 1.25 12.00 1.38 5.44 3.88 4.75 7.00 #12 748-**.**
5.50 3.50 6.12 2.06 1.750 1.25 12.00 1.38 5.44 3.88 4.75 7.00 #12 750-**.**
5.50 4.00 6.12 2.19 1.750 1.25 12.25 1.38 5.56 4.00 4.75 7.00 #12 752-**.**
5.50 4.50 6.12 2.06 1.750 1.25 12.75 1.38 6.00 4.62 5.50 7.00 #12 754-**.**
6.00 2.50 6.75 2.25 2.000 1.38 12.50 1.50 5.62 4.19 3.50 7.00 #12 758-**.**
6.00 3.00 6.75 2.12 2.000 1.38 12.25 1.50 5.50 4.06 3.50 7.00 #12 760-**.**
6.00 3.50 6.75 2.12 2.000 1.38 12.25 1.50 5.50 4.06 4.75 7.00 #12 762-**.**
6.00 4.00 6.75 2.25 2.000 1.38 12.50 1.50 5.62 4.19 5.50 7.00 #12 764-**.**
7.00 2.50 8.00 2.81 2.500 1.62 14.00 1.75 6.75 4.38 5.00 8.25 #16 768-**.**
7.00 3.00 8.00 2.81 2.500 1.62 14.00 1.75 6.75 4.38 5.00 8.25 #16 770-**.**
7.00 3.50 8.00 2.81 2.500 1.62 14.00 1.75 6.75 4.38 5.00 8.25 #16 772-**.**
7.00 4.00 8.00 2.69 2.500 1.62 14.50 1.75 6.62 5.00 5.00 8.25 #16 774-**.**
8.00 3.50 9.00 2.88 3.000 1.88 16.25 2.00 7.06 5.31 5.00 9.25 #16 778-**.**
8.00 4.00 9.00 2.88 3.000 1.88 16.25 2.00 7.06 5.31 5.00 9.25 #16 780-**.**
8.00 4.50 9.00 2.88 3.000 1.88 16.25 2.00 7.06 5.31 5.00 9.25 #16 782-**.**
