Features

  • Clevis style base and rod mounts
  • 3000 PSI Heavy Duty Type
  • Cold drawn (high impact) 75,000 min.yield D.O.M. tubing
  • Ground & polished, hard chrome plated rods (75,000 min. yield)
  • Welded style construction certified to A.W.S. B2.1
  • Internally threaded head design with buttress threads
  • Highest quality seal configurations compatible with petroleum base fluids
  • Increased bearing length on both head & piston
  • Ductile iron head gland & piston
  • Piston utilizes wear bearings
  • Nylon inserted lock nut
  • Standard paint; black primer

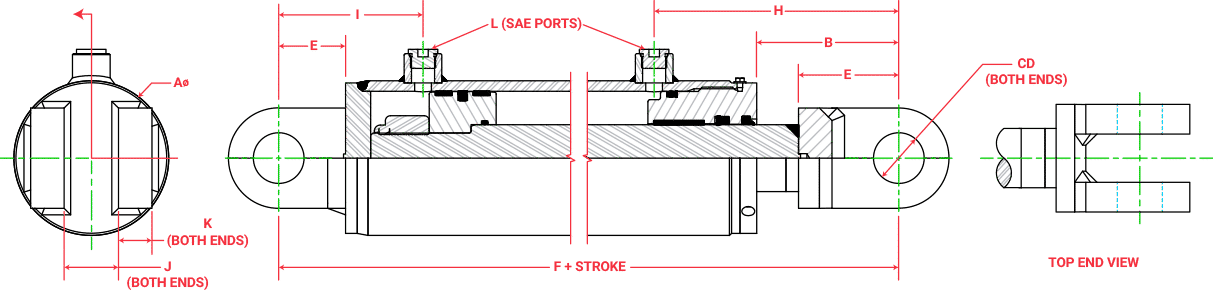

800 Series Cylinder Diagram

Bore Rod A B CD E F G H I J K L Part #
3.00 1.75 3.50 3.31 1.000 2.00 12.00 2.00 5.75 3.94 1.25 .50 #6 804-**.**
3.00 2.00 3.50 3.31 1.000 2.00 12.00 2.00 5.75 3.94 1.25 .50 #6 806-**.**
3.50 1.75 4.00 3.81 1.250 2.00 12.50 2.50 4.50 4.50 1.62 .75 #8 810-**.**
3.50 2.00 4.00 3.50 1.250 2.00 12.50 2.50 5.94 4.69 1.62 .75 #8 812-**.**
4.00 2.00 4.62 4.25 1.500 2.00 14.00 3.00 7.31 4.31 1.62 1.00 #8 816-**.**
4.00 2.50 4.62 4.25 1.500 2.00 14.00 3.00 7.31 4.31 1.62 1.00 #8 818-**.**
4.00 3.00 4.62 4.12 1.500 2.00 14.50 3.00 7.94 4.56 1.62 1.00 #8 820-**.**
4.50 2.00 5.12 4.25 1.500 2.00 14.25 3.00 7.38 4.50 1.62 1.00 #10 824-**.**
4.50 2.50 5.12 4.00 1.500 2.00 14.25 3.00 7.12 4.75 1.62 1.00 #10 826-**.**
4.50 3.00 5.12 4.00 1.500 2.00 14.25 3.00 7.12 4.75 1.62 1.00 #10 828-**.**
4.50 3.50 5.12 4.00 1.500 2.00 14.50 3.00 7.88 4.62 1.62 1.00 #10 830-**.**
5.00 2.00 5.62 4.25 1.750 2.25 14.25 3.50 7.19 4.69 2.12 1.00 #12 834-**.**
5.00 2.50 5.62 4.12 1.750 2.25 15.00 3.50 7.50 4.94 2.12 1.00 #12 836-**.**
5.00 3.00 5.62 4.12 1.750 2.25 15.00 3.50 7.50 4.94 2.12 1.00 #12 838-**.**
5.00 3.50 5.62 4.25 1.750 2.25 15.00 3.50 7.62 4.81 2.12 1.00 #12 840-**.**
5.00 4.00 5.62 4.12 1.750 2.25 15.00 3.50 8.06 4.94 2.12 1.00 #12 842-**.**
5.50 2.50 6.12 4.44 1.750 2.25 15.50 3.50 7.81 5.00 2.12 1.25 #12 846-**.**
5.50 3.00 6.12 4.56 1.750 2.25 15.50 3.50 7.94 4.88 2.12 1.25 #12 848-**.**
5.50 3.50 6.12 4.56 1.750 2.25 15.50 3.50 7.94 4.88 2.12 1.25 #12 850-**.**
5.50 4.00 6.12 4.44 1.750 2.25 15.50 3.50 7.81 5.00 2.12 1.25 #12 852-**.**
5.50 4.50 6.12 4.56 1.750 2.25 16.25 3.50 8.50 5.63 2.12 1.25 #12 854-**.**
6.00 2.50 6.75 4.62 2.000 2.50 16.00 4.00 8.00 5.31 2.62 1.25 #12 858-**.**
6.00 3.00 6.75 4.50 2.000 2.50 15.75 4.00 7.88 5.19 2.62 1.25 #12 860-**.**
6.00 3.50 6.75 4.50 2.000 2.50 15.75 4.00 7.88 5.19 2.62 1.25 #12 862-**.**
6.00 4.00 6.75 4.62 2.000 2.50 16.00 4.00 8.00 5.31 2.62 1.25 #12 864-**.**
7.00 2.50 8.00 5.19 2.500 3.00 17.75 5.00 9.12 5.75 2.62 1.25 #16 868-**.**
7.00 3.00 8.00 5.19 2.500 3.00 17.75 5.00 9.12 5.75 2.62 1.25 #16 870-**.**
7.00 3.50 8.00 5.19 2.500 3.00 17.75 5.00 9.12 5.75 2.62 1.25 #16 872-**.**
7.00 4.00 8.00 5.06 2.500 3.00 18.25 5.00 9.00 6.38 2.62 1.25 #16 874-**.**
8.00 3.50 9.00 6.50 3.000 4.00 22.00 6.00 10.69 7.44 3.12 1.50 #16 878-**.**
8.00 4.00 9.00 6.50 3.000 4.00 22.00 6.00 10.69 7.44 3.12 1.50 #16 880-**.**
8.00 4.50 9.00 6.50 3.000 4.00 22.00 6.00 10.69 7.44 3.12 1.50 #16 882-**.**
