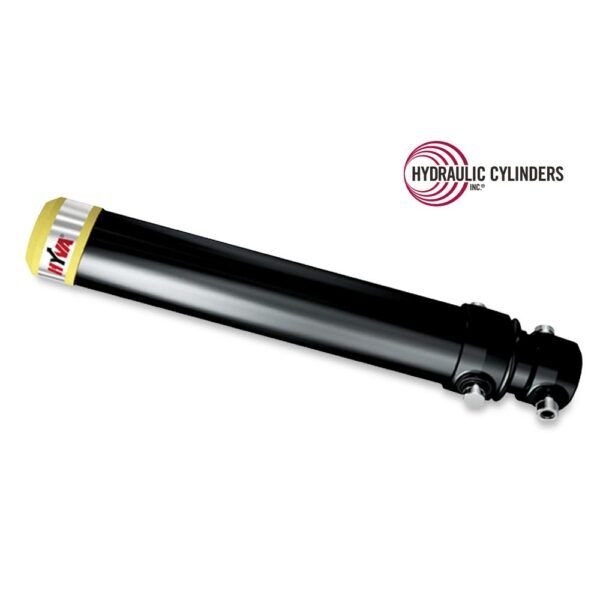

70524227 (Hyva) Replacement SAT Dump Hoist Cylinders

Call For Availabilty

Specifications for FC A5.5-4-158-K6-HC

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Manufacturer Hyva
Function Dump Hoist / Body Raise / Tipping
Type Dump
Features Cap Over / Cover Tube, Single-Acting Telescopic Hydraulic Cylinders (SAT)
SKU FC A5.5-4-158-K6-HC
Weight 359 lbs
Base End Mount Type

Trunnion

Closed

51.81″

Extend Port/Plunger

-12 SAE ORB Out Base of Trunnion

Open Extended Length

210.21″

Rod End Mount Type

Trunnion

Tele Largest Stage OD

6″

Telescopic Number of Stages

4

Telescopic Stroke

158″

Trunnion Closed

6.38

Trunnion Pin Dia

1.87

Trunnion Pin Length

2

Trunnion Width

11

Description

The following cylinders are compatible replacements for replacement part number FC A5.5-4-158-K6-HC.

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
15-01-0027 FC A5.5-4-158-K6-HC Lanau Lanau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
15-01-0028 FC A5.5-4-158-K6-HC Lanau Lanau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
5000121 FC A5.5-4-158-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
5000122 FC A5.5-4-158-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
70524227 FC A5.5-4-158-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
71504236 FC A5.5-4-158-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 129-4-03980-594C-K0162 FC A5.5-4-158-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 5.5-4-157 FC A5.5-4-158-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A129-4-04020-594-K0162-HC FC A5.5-4-158-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A5.5-4-158-K6-HC FC A5.5-4-158-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-129-4-03980-594C-K0162 FC A5.5-4-158-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-5.5-4-157 FC A5.5-4-158-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC129-4-03980-594C-K0162 FC A5.5-4-158-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC5.5-4-157 FC A5.5-4-158-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M150-5.5-4 FC A5.5-4-158-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M160-5.5-4 FC A5.5-4-158-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M160-5.5-4 Walinga FC A5.5-4-158-K6-HC Walinga Walinga ChampIon Recycler Waste Hyva SAT-CT Body Raise / Dump
PM0551504VM0121 FC A5.5-4-158-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0551504VM0405 FC A5.5-4-158-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0551604VM0122 FC A5.5-4-158-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0551604VM0407 FC A5.5-4-158-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
