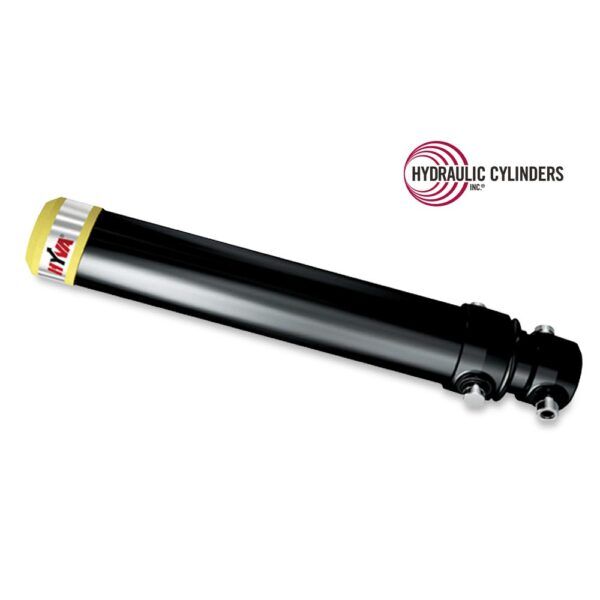

70525367 (Hyva) Replacement SAT Dump Hoist Cylinders

$3,480.00

Specifications for FC A6.5-4-170-K8-HC

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Manufacturer Hyva
Function Dump Hoist / Body Raise / Tipping
Type Dump
Features Cap Over / Cover Tube, Single-Acting Telescopic Hydraulic Cylinders (SAT)
SKU FC A6.5-4-170-K8-HC
Weight 465 lbs
Base End Mount Type

Trunnion

Closed

54.81″

Extend Port/Plunger

-16 SAE ORB Out Base Trunnion

Open Extended Length

224.81″

Rod End Mount Type

Trunnion

Tele Largest Stage OD

6″

Telescopic Number of Stages

4

Telescopic Stroke

170″

Trunnion Closed

7.62

Trunnion Pin Dia

2.25

Trunnion Pin Length

2

Trunnion Width

11.94

Description

70525367 FC A6.5-4-170-K8-HC Hyva replacement single-acting telescopic dump hoist cylinders successfully complete dump hoist, body raise, and tipping functions.



Compatible Replacement Cylinders for #FC A6.5-4-170-K8-HC

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
096-2012-1 FC A6 5-4-170-K8-HC Hyco Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
096-2012-2 FC A6 5-4-170-K8-HC Hyco Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
096-2033-0 FC A6 5-4-170-K8-HC Hyco Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
097-2027-0 FC A6 5-4-170-K8-HC Hyco Miscellaneous Manufacturers Ultratel 35 Ton Dump Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 4057 CompactIng Recycler Recycler Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 2042 StreetForce Manual Automated Sideloader / Manual Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 2642 StreetForce Manual Automated Sideloader / Manual Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 2643 Autoreach Split Body Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 2644 StreetForce MSL Sideloader / Manual Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 2645 StreetForce Manual Automated Full Eject Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 2842 StreetForce Manual Automated Sideloader / Manual Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 2844 StreetForce MSL Sideloader / Manual Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 2845 StreetForce Full Eject MA Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 2846 StreetForce Manual Full Eject Sideloader / Automated Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 3142 StreetForce Manual Automated Sideloader / Manual Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 3144 StreetForce MSL Sideloader / Manual Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 3145 StreetForce Manual Automated Full Eject Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 3146 StreetForce Manual Full Eject Sideloader / Automated Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1143954 FC A6 5-4-170-K8-HC Mcneilus (MTM) McNeilus (MTM) 3457 Compacting Recycler Recycler Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
15-01-0034 FC A6 5-4-170-K8-HC Lanau Lanau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
15-01-0063 FC A6 5-4-170-K8-HC Lanau Lanau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
15-01-0093 FC A6 5-4-170-K8-HC Lanau Lanau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
3772514087 FC A6 5-4-170-K8-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
3772514104 FC A6 5-4-170-K8-HC Commercial / Parker McNeilus (MTM) 3142 StreetForce MSL Auto Sideloader / Manual Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
5000018 FC A6 5-4-170-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
5000126 FC A6 5-4-170-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
6.5-4-170-B00 FC A6 5-4-170-K8-HC Muncie Power Products Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
6.54-3002E-170 FC A6 5-4-170-K8-HC Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
6.54-3004-170 FC A6 5-4-170-K8-HC Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
6.54-3010-170 FC A6 5-4-170-K8-HC Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
70525367 FC A6 5-4-170-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
71505276 FC A6 5-4-170-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
76418 FC A6 5-4-170-K8-HC Henderson Products, Inc., a division of Douglas Dynamics, Inc. Henderson Products, Inc., a division of Douglas Dynamics, Inc. Mark One 17.5 -18 Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
86687 FC A6 5-4-170-K8-HC Henderson Products, Inc., a division of Douglas Dynamics, Inc. Henderson Products, Inc., a division of Douglas Dynamics, Inc. Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
AK6.5-4-169 FC A6 5-4-170-K8-HC AKALIKO USA, by Rockmac Inc, is a part of AKALIKO GLOBAL Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
C-SA-170-6.5-4 FC A6 5-4-170-K8-HC Hyco Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS170-6-4 FC A6 5-4-170-K8-HC Mailhot Henderson Products, Inc., a division of Douglas Dynamics, Inc. Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CYLM170654 FC A6 5-4-170-K8-HC Bibeau Bibeau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 149-4-04280-594a-k0194 FC A6 5-4-170-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 6.5-4-169 FC A6 5-4-170-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A149-4-04320-594-K0194-HC FC A6 5-4-170-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A6 5-4-170-K8-HC FC A6 5-4-170-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A6.5-4-170-K8-HC FC A6 5-4-170-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-149-4-04280-594a-k0194 FC A6 5-4-170-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-6.5-4-169 FC A6 5-4-170-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC149-4-04280-594A-K0194 FC A6 5-4-170-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC6.5-4-169 FC A6 5-4-170-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
G3 170-5.7-4 FC A6 5-4-170-K8-HC Mailhot Henderson Products, Inc., a division of Douglas Dynamics, Inc. Mark One 17.5 -18 Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
G3-170-5.7-4 FC A6 5-4-170-K8-HC Mailhot Henderson Products, Inc., a division of Douglas Dynamics, Inc. Mark One 17.5 -18 Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M170-6.5-4 FC A6 5-4-170-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M173-6-4 FC A6 5-4-170-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PG0571704VM0150 FC A6 5-4-170-K8-HC Mailhot Henderson Products, Inc., a division of Douglas Dynamics, Inc. Mark One 17.5 -18 Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0601734VM0018 FC A6 5-4-170-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0651704VM0126 FC A6 5-4-170-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0651704VM0394 FC A6 5-4-170-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PS0601704VM0050 FC A6 5-4-170-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
RR2835 FC A6 5-4-170-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
S74MM-2G-170 FC A6 5-4-170-K8-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
S74MM-7G-170 FC A6 5-4-170-K8-HC Commercial / Parker McNeilus (MTM) 3142 StreetForce Manual Automated Sideloader / Manual Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
SA170-6.5-4-TT-54.87-7.62 FC A6 5-4-170-K8-HC Hyco Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
SA170-7-4-TT-56.25-7.62 FC A6 5-4-170-K8-HC Hyco Miscellaneous Manufacturers Ultratel 35 Ton Dump Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
