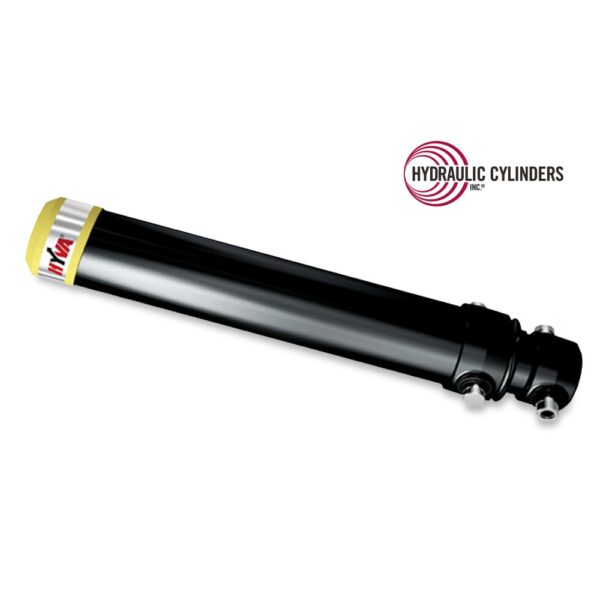

70525393 (Hyva) Replacement SAT Dump Hoist Cylinders
$3,684.00
Specifications for FC A6.5-4-183-K8-HC
Categories | Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders |
---|---|
Manufacturer | Hyva |
Function | Dump Hoist / Body Raise / Tipping |
Type | Dump |
Features | Cap Over / Cover Tube, Single-Acting Telescopic Hydraulic Cylinders (SAT) |
SKU | FC A6.5-4-183-K8-HC |
---|---|
Weight | 489 lbs |
Base End Mount Type | Trunnion |
Closed | 57.99″ |
Open Extended Length | 241.59″ |
Rod End Mount Type | Trunnion |
Tele Largest Stage OD | 6″ |
Telescopic Number of Stages | 4 |
Telescopic Stroke | 184″ |
Trunnion Closed | 7.62 |
Trunnion Pin Dia | 2.25 |
Trunnion Pin Length | 2 |
Trunnion Width | 11.94 |
Description
70525393 FC A6.5-4-183-K8-HC Hyva replacement single-acting telescopic cylinders feature base and rod end trunnion mounts as well as 4 telescopic stages.
Compatible Replacement Cylinders for #A6.5-4-183-K8-HC
Reference Part Number | HCI Part Number | Reference Name | Equipment Manufacturer | Equipment Model | Equipment Type | Industry | Replacement Name | Cylinder Type | Cylinder Function |
---|---|---|---|---|---|---|---|---|---|
096-2034-0 | FC A6.5-4-183-K8-HC | Hyco | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
1156049 | FC A6.5-4-183-K8-HC | Mcneilus (MTM) | Labrie Equipment, Labrie EnviroQuip Group | — | — | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
1156049 | FC A6.5-4-183-K8-HC | Mcneilus (MTM) | Labrie Equipment, Labrie EnviroQuip Group | — | — | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
15-01-0035 | FC A6.5-4-183-K8-HC | Lanau | Lanau | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
15-01-0056 | FC A6.5-4-183-K8-HC | Lanau | Lanau | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
15-01-0056 | FC A6.5-4-183-K8-HC | Lanau | Lanau | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
3772514091 | FC A6.5-4-183-K8-HC | Commercial / Parker | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
3772514095 | FC A6.5-4-183-K8-HC | Commercial / Parker | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
42268A | FC A6.5-4-183-K8-HC | Nordic / Nordsen | Nordic / Nordsen | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
42268A | FC A6.5-4-183-K8-HC | Nordic / Nordsen | Nordic / Nordsen | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
5000280 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
5000280 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
6.5-4-180-B00 | FC A6.5-4-183-K8-HC | Muncie Power Products | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
6.5-4-180-B00 | FC A6.5-4-183-K8-HC | Muncie Power Products | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
6.54-3002E-180 | FC A6.5-4-183-K8-HC | Custom Hoist | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
6.54-3004-180 | FC A6.5-4-183-K8-HC | Custom Hoist | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
6.54-3010-180 | FC A6.5-4-183-K8-HC | Custom Hoist | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
70525393 | FC A6.5-4-183-K8-HC | Hyva | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
71505306 | FC A6.5-4-183-K8-HC | Hyva | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
86205 | FC A6.5-4-183-K8-HC | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | Henderson Products, Inc., a division of Douglas Dynamics, Inc. | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
AK6.5-4-182 | FC A6.5-4-183-K8-HC | AKALIKO USA, by Rockmac Inc, is a part of AKALIKO GLOBAL | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
C-SA-180-6.5-4 | FC A6.5-4-183-K8-HC | Hyco | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
D-PM0651804VM0428 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
D-PM0651804VM0428 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
FC 149-4-04620-594A-K0194 | FC A6.5-4-183-K8-HC | Hyva | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
FC 6.5-4-182 | FC A6.5-4-183-K8-HC | Hyva | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
FC A149-4-04660-594-K0194-HC | FC A6.5-4-183-K8-HC | Hyva | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
FC A6.5-4-183-K8-HC | FC A6.5-4-183-K8-HC | Hyva | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
FC-149-4-04620-594A-K0194 | FC A6.5-4-183-K8-HC | Hyva | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
FC-6.5-4-182 | FC A6.5-4-183-K8-HC | Hyva | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
FC149-4-4620-594A-K0194 | FC A6.5-4-183-K8-HC | Hyva | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
FC6.5-4-182 | FC A6.5-4-183-K8-HC | Hyva | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
G3 180-5.7-4 | FC A6.5-4-183-K8-HC | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
G3 180-5.7-4 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
G3 180-5.7-4 | FC A6.5-4-183-K8-HC | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
G3 180-5.7-4 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
G3-180-5.7-4 | FC A6.5-4-183-K8-HC | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
G3-180-5.7-4 | FC A6.5-4-183-K8-HC | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
G3180-5.7-4 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
G3180-5.7-4 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
GS180-5.7-4 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
GS180-5.7-4 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC01450 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | — | — | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC01450-01 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 With Helping Hand | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC01450-01 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Automizer | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC01450-01 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Automizer Right Hand | Sideloader / Automated | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC01450-01 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC01450-01 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 With Cool Hand | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC01450-01 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Expert T 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC01450-02 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Automizer | Sideloader / Automated | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC01450-02 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Automizer Right Hand | Sideloader / Automated | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC01450-02 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | Automizer 2010 | Sideloader / Automated | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC0145001 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | — | — | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
HYC0145002 | FC A6.5-4-183-K8-HC | Labrie Equipment, Labrie EnviroQuip Group | Labrie Equipment, Labrie EnviroQuip Group | — | — | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
M180-6.5-4 | FC A6.5-4-183-K8-HC | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
M180-6.5-4 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
M180-6.5-4 | FC A6.5-4-183-K8-HC | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
M180-6.5-4 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
MS180-6.5-4 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
MS180-6.5-4 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
NTGC-180-6.5-4 | FC A6.5-4-183-K8-HC | Nordic / Nordsen | Nordic / Nordsen | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
NTGC-180-6.5-4 | FC A6.5-4-183-K8-HC | Nordic / Nordsen | Nordic / Nordsen | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PG0571804VM0115 | FC A6.5-4-183-K8-HC | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PG0571804VM0115 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PG0571804VM0115 | FC A6.5-4-183-K8-HC | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PG0571804VM0115 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PG0571804VM0178 | FC A6.5-4-183-K8-HC | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PG0571804VM0178 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PG0571804VM0178 | FC A6.5-4-183-K8-HC | Mailhot | Labrie Equipment, Labrie EnviroQuip Group | Expert 2000 | Sideloader | Waste | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PG0571804VM0178 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PM0651804VM0280 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PM0651804VM0280 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PM0651804VM0395 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PM0651804VM0395 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PM0651804VM0428 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
PM0651804VM0428 | FC A6.5-4-183-K8-HC | Mailhot | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
S74MM-2G-180 | FC A6.5-4-183-K8-HC | Commercial / Parker | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
S74MM-5-180 | FC A6.5-4-183-K8-HC | Commercial / Parker | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Hyva | SAT-CT | Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper |
