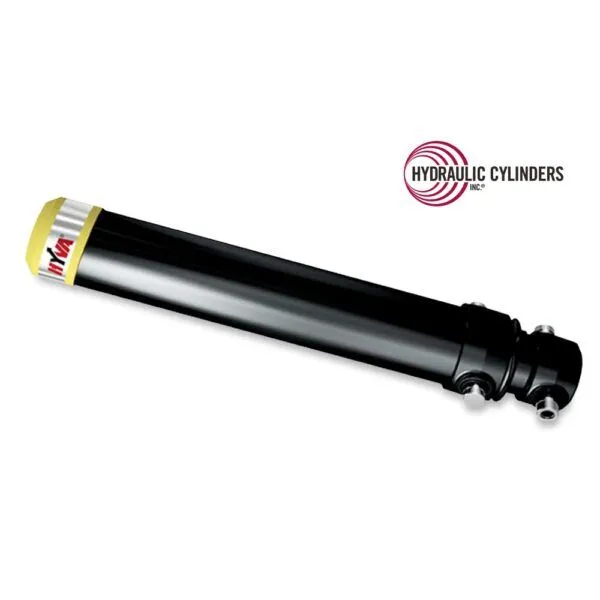

70594181 (Hyva) Replacement SAT Dump Trailer Cylinders

Call For Availabilty

Specifications for FC A5.5-3-136-K6-1DA-HC

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Manufacturer Hyva
Function Dump Hoist / Body Raise / Tipping
Type Dump
Features Cap Over / Cover Tube, Double-Acting Telescopic Hydraulic Cylinders (DAT), Single-Acting Telescopic Hydraulic Cylinders (SAT)
SKU FC A5.5-3-136-K6-1DA-HC
Weight 373 lbs
Base End Mount Type

Trunnion

Closed

51.81″

Extend Port/Plunger

-12 SAE ORB Out Base Trunnion

Open Extended Length

170.41″

Rod End Mount Type

Trunnion

Tele Largest Stage OD

5″

Telescopic Number of Stages

3

Telescopic Stroke

119″

Trunnion Closed

6.38

Trunnion Pin Dia

1.87

Trunnion Pin Length

2

Trunnion Width

11

Description

The following cylinders are compatible replacements for replacement part number FC A5.5-3-136-K6-1DA-HC.

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
05050374 FC A5.5-3-136-K6-1DA-HC Monroe Truck Equipment, Inc. (MTE) Monroe Truck Equipment, Inc. (MTE) Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
3771433133 FC A5.5-3-136-K6-1DA-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
5000138 FC A5.5-3-136-K6-1DA-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
5000171 FC A5.5-3-136-K6-1DA-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Dump Hoist, Body Raise, Tipping
5050374 FC A5.5-3-136-K6-1DA-HC Monroe Truck Equipment, Inc. (MTE) Monroe Truck Equipment, Inc. (MTE) Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
70594181 FC A5.5-3-136-K6-1DA-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
71504199 FC A5.5-3-136-K6-1DA-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
79659 FC A5.5-3-136-K6-1DA-HC Henderson Products, Inc., a division of Douglas Dynamics, Inc. Henderson Products, Inc., a division of Douglas Dynamics, Inc. Magnum Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 129-3-03410-599a-k0162-1da-hc FC A5.5-3-136-K6-1DA-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 5.5-3-134-1DA-HC FC A5.5-3-136-K6-1DA-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A129-3-03450-599-K0192-1DA-HC FC A5.5-3-136-K6-1DA-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A5.5-3-136-K6-1DA-HC FC A5.5-3-136-K6-1DA-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-129-3-03410-599a-k0162-1da-hc FC A5.5-3-136-K6-1DA-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-5.5-3-134-1DA-HC FC A5.5-3-136-K6-1DA-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC129-3-03410-599a-k0162-1da-hc FC A5.5-3-136-K6-1DA-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC5.5-3-134-1DA-HC FC A5.5-3-136-K6-1DA-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M124-5-3-DA FC A5.5-3-136-K6-1DA-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M130-5.5-3-DA FC A5.5-3-136-K6-1DA-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M140-5.5-3-DA FC A5.5-3-136-K6-1DA-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PMD0501243VM0138 FC A5.5-3-136-K6-1DA-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PMD0551303VM0171 FC A5.5-3-136-K6-1DA-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Dump Hoist, Body Raise, Tipping
SD63MM-1-130 FC A5.5-3-136-K6-1DA-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva DAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
