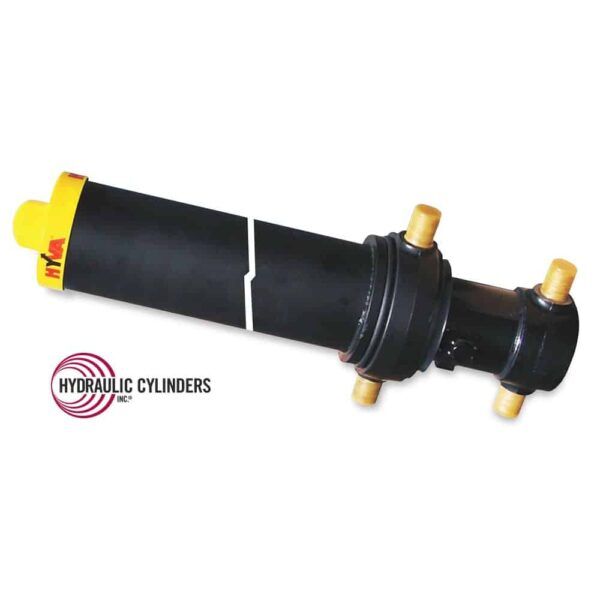

71505306 (Hyva) Replacement SAT Dump Hoist Cylinders

Call For Availabilty

Specifications for FC 6.5-4-182

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Manufacturer Hyva
Function Dump Hoist / Body Raise / Tipping
Type Dump
Features Cap Over / Cover Tube, Single-Acting Telescopic Hydraulic Cylinders (SAT)
SKU FC 6.5-4-182
Weight 532 lbs
Base End Mount Type

Trunnion

Closed

58.44″

Extend Port/Plunger

-16 SAE ORB

Open Extended Length

240.44″

Rod End Mount Type

Trunnion

Tele Largest Stage OD

6″

Telescopic Number of Stages

4

Telescopic Stroke

182″

Trunnion Closed

7.64

Trunnion Pin Length

2.00

Trunnion Width

11.91

Trunnion Pin Dia

2.24

Description

The following cylinders are compatible replacements for replacement part number FC 6.5-4-182.

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
096-2034-0 FC A6.5-4-183-K8-HC Hyco Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1156049 FC A6.5-4-183-K8-HC Mcneilus (MTM) Labrie Equipment, Labrie EnviroQuip Group Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
1156049 FC A6.5-4-183-K8-HC Mcneilus (MTM) Labrie Equipment, Labrie EnviroQuip Group Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
15-01-0035 FC A6.5-4-183-K8-HC Lanau Lanau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
15-01-0056 FC A6.5-4-183-K8-HC Lanau Lanau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
15-01-0056 FC A6.5-4-183-K8-HC Lanau Lanau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
3772514091 FC A6.5-4-183-K8-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
3772514095 FC A6.5-4-183-K8-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
42268A FC A6.5-4-183-K8-HC Nordic / Nordsen Nordic / Nordsen Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
42268A FC A6.5-4-183-K8-HC Nordic / Nordsen Nordic / Nordsen Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
5000280 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
5000280 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
6.5-4-180-B00 FC A6.5-4-183-K8-HC Muncie Power Products Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
6.5-4-180-B00 FC A6.5-4-183-K8-HC Muncie Power Products Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
6.54-3002E-180 FC A6.5-4-183-K8-HC Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
6.54-3004-180 FC A6.5-4-183-K8-HC Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
6.54-3010-180 FC A6.5-4-183-K8-HC Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
70525393 FC A6.5-4-183-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
71505306 FC A6.5-4-183-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
86205 FC A6.5-4-183-K8-HC Henderson Products, Inc., a division of Douglas Dynamics, Inc. Henderson Products, Inc., a division of Douglas Dynamics, Inc. Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
AK6.5-4-182 FC A6.5-4-183-K8-HC AKALIKO USA, by Rockmac Inc, is a part of AKALIKO GLOBAL Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
C-SA-180-6.5-4 FC A6.5-4-183-K8-HC Hyco Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
D-PM0651804VM0428 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
D-PM0651804VM0428 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 149-4-04620-594A-K0194 FC A6.5-4-183-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 6.5-4-182 FC A6.5-4-183-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A149-4-04660-594-K0194-HC FC A6.5-4-183-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A6.5-4-183-K8-HC FC A6.5-4-183-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-149-4-04620-594A-K0194 FC A6.5-4-183-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-6.5-4-182 FC A6.5-4-183-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC149-4-4620-594A-K0194 FC A6.5-4-183-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC6.5-4-182 FC A6.5-4-183-K8-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
G3 180-5.7-4 FC A6.5-4-183-K8-HC Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
G3 180-5.7-4 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
G3 180-5.7-4 FC A6.5-4-183-K8-HC Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
G3 180-5.7-4 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
G3-180-5.7-4 FC A6.5-4-183-K8-HC Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
G3-180-5.7-4 FC A6.5-4-183-K8-HC Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
G3180-5.7-4 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
G3180-5.7-4 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
GS180-5.7-4 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
GS180-5.7-4 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01450 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01450-01 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Expert 2000 With Helping Hand Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01450-01 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Automizer Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01450-01 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Automizer Right Hand Sideloader / Automated Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01450-01 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01450-01 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Expert 2000 With Cool Hand Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01450-01 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Expert T 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01450-02 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Automizer Sideloader / Automated Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01450-02 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Automizer Right Hand Sideloader / Automated Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC01450-02 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Automizer 2010 Sideloader / Automated Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC0145001 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
HYC0145002 FC A6.5-4-183-K8-HC Labrie Equipment, Labrie EnviroQuip Group Labrie Equipment, Labrie EnviroQuip Group Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M180-6.5-4 FC A6.5-4-183-K8-HC Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M180-6.5-4 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M180-6.5-4 FC A6.5-4-183-K8-HC Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M180-6.5-4 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
MS180-6.5-4 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
MS180-6.5-4 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
NTGC-180-6.5-4 FC A6.5-4-183-K8-HC Nordic / Nordsen Nordic / Nordsen Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
NTGC-180-6.5-4 FC A6.5-4-183-K8-HC Nordic / Nordsen Nordic / Nordsen Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PG0571804VM0115 FC A6.5-4-183-K8-HC Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PG0571804VM0115 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PG0571804VM0115 FC A6.5-4-183-K8-HC Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PG0571804VM0115 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PG0571804VM0178 FC A6.5-4-183-K8-HC Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PG0571804VM0178 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PG0571804VM0178 FC A6.5-4-183-K8-HC Mailhot Labrie Equipment, Labrie EnviroQuip Group Expert 2000 Sideloader Waste Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PG0571804VM0178 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0651804VM0280 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0651804VM0280 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0651804VM0395 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0651804VM0395 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0651804VM0428 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0651804VM0428 FC A6.5-4-183-K8-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
S74MM-2G-180 FC A6.5-4-183-K8-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
S74MM-5-180 FC A6.5-4-183-K8-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
