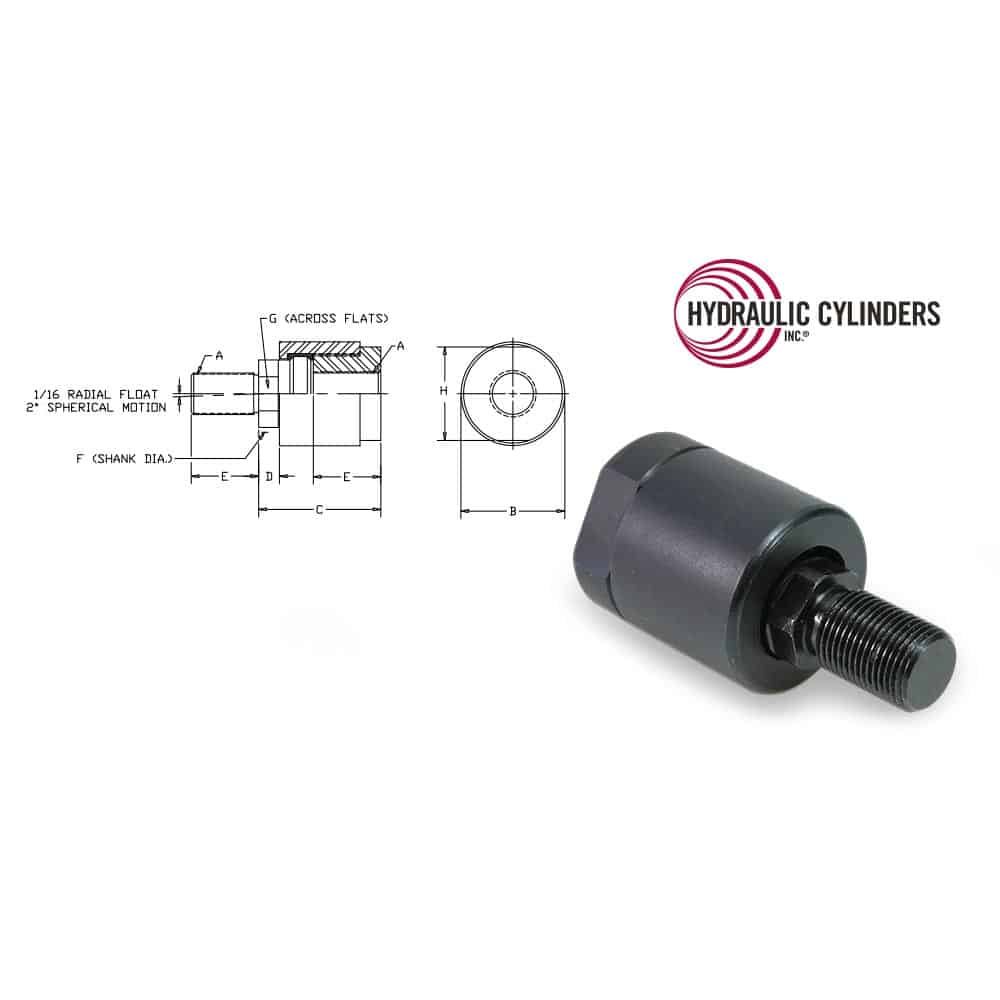

Alignment Coupler
$60.00 – $750.00
Specifications for
| Categories | Alignment Coupler, Mounts, Replacement Hydraulic Cylinder Component Parts & Accessories |
|---|---|
| Features | Detachable Mounts |
Product Variations
| SKU | A | B | C | D | E | F | G | H | Max. Pull At Yield | List Price |
|---|---|---|---|---|---|---|---|---|---|---|
| BD-250F | 1/4"-28 | 7/8 | 1-1/4 | 1/4 | 5/8 | 0.245 | 1/5 | 13/16 | 4,000# | $60.00 |
| BD-312F | 5/16"-24 | 7/8 | 1-1/4 | 1/4 | 5/8 | 0.308 | 1/4 | 13/16 | 4,000# | $65.00 |
| BD-375C | 3/8"-16 | 7/8 | 1-1/4 | 1/4 | 5/8 | 0.369 | 5/16 | 13/16 | 5,000# | $75.00 |
| BD-375F | 3/8"-24 | 7/8 | 1-1/4 | 1/4 | 5/8 | 0.370 | 5/16 | 13/16 | 5,000# | $65.00 |
| BD-437F | 7/16"-20 | 1-1/4 | 2 | 1/2 | 3/4 | 0.625 | 9/16 | 1-1/8 | 10,000# | $88.00 |
| BD-500C | 1/2"-13 | 1-1/4 | 2 | 1/2 | 3/4 | 0.625 | 9/16 | 1-1/8 | 14.000# | $80.00 |
| BD-500F | 1/2"-20 | 1-1/4 | 2 | 1/2 | 3/4 | 0.625 | 9/16 | 1-1/8 | 14,000# | $80.00 |
| BD-625F | 5/8"-16 | 1-1/4 | 2 | 1/2 | 3/4 | 0.625 | 1/3 | 1-1/8 | 14,000# | $80.00 |
| BD-750C | 3/4"-10 | 1-3/4 | 2-5/16 | 1/3 | 1-1/8 | 0.969 | 7/8 | 1-1/2 | 34,000# | $100.00 |
| BD-750F | 3/4"-16 | 1-3/4 | 2-5/16 | 1/3 | 1-1/8 | 0.969 | 7/8 | 1-1/2 | 34,000# | Call For Availabilty |
| BD-875F | 7/8"-14 | 1-3/4 | 2-5/16 | 1/3 | 1-1/8 | 31/32 | 7/8 | 1-1/2 | 34,000# | Call For Availabilty |
| BD-1000C | 1"-8 | 2-1/2 | 2-15/16 | 1/2 | 1-5/8 | 1.375 | 1-1/4 | 2-1/4 | 64,000# | $300.00 |
| BD-1000F | 1"-14 | 2-1/2 | 2-15/16 | 1/2 | 1-5/8 | 1.625 | 1-1/4 | 2-1/4 | 64,000# | $325.00 |
| BD-1250F | 1-1/4"-12 | 2-1/2 | 2-15/16 | 1/2 | 1-5/8 | 1.625 | 1-1/4 | 2-1/4 | 64,000# | $325.00 |
| BD-1375F | 1-3/8"-12 | 2-1/2 | 2-15/16 | 1/2 | 1-5/8 | 1.625 | 1-1/4 | 2-1/4 | 64,000# | Call For Availabilty |
| BD-1500F | 1-1/2"-12 | 3-1/4 | 4-3/8 | 13/16 | 2-1/4 | 0.175 | 1-1/2 | 3 | 120,000# | $400.00 |
| BD-1750F | 1-3/4"-12 | 3-1/4 | 4-3/8 | 13/16 | 2-1/4 | 1.75 | 1-1/2 | 3 | 120,000# | $525.00 |
| BD-1875F | 1-7/8"-12 | 3-3/4 | 5-7/16 | 2/3 | 3 | 2.25 | 1-7/8 | 3-1/2 | 240,000# | $700.00 |
| BD-2000F | 2"-12 | 3-3/4 | 5-7/16 | 2/3 | 3 | 2.25 | 1-7/8 | 3 | 240,000# | $750.00 |
Description
Compatible Replacement Cylinders for Alignment Couplers
| SKU | Reference Part Number | Reference Part Name |
|---|---|---|
| BD-250F | BD-250F | Hydrauic Cylinders Inc |
| BD-250F | AC250 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-250F | DAC-250F | CRC Manufacturing, Hydratech Industries |
| BD-312F | BD-312F | Hydrauic Cylinders Inc |
| BD-312F | 1347570031 | Parker Cyl, Industrial |
| BD-312F | AC312 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-312F | DAC-312F | CRC Manufacturing, Hydratech Industries |
| BD-375C | BD-375C | Hydrauic Cylinders Inc |
| BD-375F | BD-375F | Hydrauic Cylinders Inc |
| BD-375F | 1347570038 | Parker Cyl, Industrial |
| BD-375F | AC375 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-375F | DAC375F | CRC Manufacturing, Hydratech Industries |
| BD-437F | BD-437F | Hydrauic Cylinders Inc |
| BD-437F | R978935082 | Bosch Rexroth |
| BD-437F | 526301-07 | Ortman Fluid Power |
| BD-437F | AC-2-05 | Hydro-Line, acquired by Eaton 2000, acquired by Danfoss 2021 |
| BD-437F | S-1 | Hanna Cylinders, acquired T. J. Brooks Co 1994 |
| BD-437F | LC-1-07A | Lynair, Inc. |
| BD-437F | C1150-79G | Peninsular Cylinder Co. |
| BD-437F | 11-YAC-2-05 | Yates Industries |
| BD-437F | AC437 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-437F | DAC-437F | CRC Manufacturing, Hydratech Industries |
| BD-437F | 1347570044 | Parker Cyl, Schrader Bellows |
| BD-437F | RAC-0044 | Sheffer Corporation |
| BD-437F | cm-BD-437 | Hercules Sealing Products |
| BD-500C | BD-500C | Hydrauic Cylinders Inc |
| BD-500C | LC-1-08A | Lynair, Inc. |
| BD-500F | BD-500F | Hydrauic Cylinders Inc |
| BD-500F | R978935080 | Bosch Rexroth |
| BD-500F | C1150-79 | Peninsular Cylinder Co. |
| BD-500F | 11-YAC-2-06 | Yates Industries |
| BD-500F | AC500 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-500F | DAC-500F | CRC Manufacturing, Hydratech Industries |
| BD-500F | 1347570050 | Parker Cyl, Schrader Bellows |
| BD-500F | RAC-0050 | Sheffer Corporation |
| BD-500F | cm-BD-500 | Hercules Sealing Products |
| BD-625F | BD-625F | Hydrauic Cylinders Inc |
| BD-625F | LC-1-10A | Lynair, Inc. |
| BD-625F | C1150-79P | Peninsular Cylinder Co. |
| BD-625F | 11-YAC-2-07 | Yates Industries |
| BD-625F | AC625 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-625F | DAC-625F | CRC Manufacturing, Hydratech Industries |
| BD-625F | 1347570063 | Parker Cyl, Schrader Bellows |
| BD-625F | RAC-0062 | Sheffer Corporation |
| BD-625F | cm-BD-625 | Hercules Sealing Products |
| BD-750C | BD-750C | Hydrauic Cylinders Inc |
| BD-750C | 526301-12 | Ortman Fluid Power |
| BD-750F | BD-750F | Hydrauic Cylinders Inc |
| BD-750F | R978935083 | Bosch Rexroth |
| BD-750F | AC-2-08 | Hydro-Line, acquired by Eaton 2000, acquired by Danfoss 2021 |
| BD-750F | S-2 | Hanna Cylinders, acquired T. J. Brooks Co 1994 |
| BD-750F | LC-1-12A | Lynair, Inc. |
| BD-750F | C1200-79 | Peninsular Cylinder Co. |
| BD-750F | 11-YAC-2-08 | Yates Industries |
| BD-750F | AC750 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-750F | DAC-750F | CRC Manufacturing, Hydratech Industries |
| BD-750F | 1347570075 | Parker Cyl, Schrader Bellows |
| BD-750F | RAC-0075 | Sheffer Corporation |
| BD-750F | cm-BD-750 | Hercules Sealing Products |
| BD-875F | BD-875F | Hydrauic Cylinders Inc |
| BD-875F | R978935084 | Bosch Rexroth |
| BD-875F | LC-1-14A | Lynair, Inc. |
| BD-875F | C1200-79G | Peninsular Cylinder Co. |
| BD-875F | 11-YAC-2-09 | Yates Industries |
| BD-875F | AC875F | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-875F | DAC-875F | CRC Manufacturing, Hydratech Industries |
| BD-875F | 1347570088 | Parker Cyl, Schrader Bellows |
| BD-875F | cm-bd-875 | Hercules Sealing Products |
| BD-1000C | BD-1000C | Hydrauic Cylinders Inc |
| BD-1000F | BD-1000F | Hydrauic Cylinders Inc |
| BD-1000F | R978935085 | Bosch Rexroth |
| BD-1000F | 526301-16 | Ortman Fluid Power |
| BD-1000F | AC-2-11 | Hydro-Line, acquired by Eaton 2000, acquired by Danfoss 2021 |
| BD-1000F | S-3 | Hanna Cylinders, acquired T. J. Brooks Co 1994 |
| BD-1000F | LC-1-16A | Lynair, Inc. |
| BD-1000F | C1400-79 | Peninsular Cylinder Co. |
| BD-1000F | 11-YAC-2-11 | Yates Industries |
| BD-1000F | DAC-1000F | CRC Manufacturing, Hydratech Industries |
| BD-1000F | 1347570100 | Parker Cyl, Schrader Bellows |
| BD-1000F | RAC-0100 | Sheffer Corporation |
| BD-1000F | cm-BD-1000 | Hercules Sealing Products |
| BD-1000F | AC1000 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-1250F | BD-1250F | Hydrauic Cylinders Inc |
| BD-1250F | R978935086 | Bosch Rexroth |
| BD-1250F | AC-2-14 | Hydro-Line, acquired by Eaton 2000, acquired by Danfoss 2021 |
| BD-1250F | S-4 | Hanna Cylinders, acquired T. J. Brooks Co 1994 |
| BD-1250F | LC-1-20A | Lynair, Inc. |
| BD-1250F | C1600-79 | Peninsular Cylinder Co. |
| BD-1250F | 11-YAC-2-14 | Yates Industries |
| BD-1250F | AC1250 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-1250F | DAC-1250F | CRC Manufacturing, Hydratech Industries |
| BD-1250F | 1347570125 | Parker Cyl, Schrader Bellows |
| BD-1250F | cm-BD-1250 | Hercules Sealing Products |
| BD-1375F | BD-1375F | Hydrauic Cylinders Inc |
| BD-1375F | 11-YAC-2-15 | Yates Industries |
| BD-1375F | AC1375 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-1375F | DAC-1375F | CRC Manufacturing, Hydratech Industries |
| BD-1500F | BD-1500F | Hydrauic Cylinders Inc |
| BD-1500F | R978935087 | Bosch Rexroth |
| BD-1500F | 526301-24 | Ortman Fluid Power |
| BD-1500F | AC-2-16 | Hydro-Line, acquired by Eaton 2000, acquired by Danfoss 2021 |
| BD-1500F | S-5 | Hanna Cylinders, acquired T. J. Brooks Co 1994 |
| BD-1500F | LC-1-24A | Lynair, Inc. |
| BD-1500F | C1800-79 | Peninsular Cylinder Co. |
| BD-1500F | 11-YAC-2-16 | Yates Industries |
| BD-1500F | AC1500 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-1500F | 1337390150 | Parker Cyl, Schrader Bellows |
| BD-1500F | RAC-0150 | Sheffer Corporation |
| BD-1500F | cm-BD-1500 | Hercules Sealing Products |
| BD-1750F | BD-1750F | Hydrauic Cylinders Inc |
| BD-1750F | R978935088 | Bosch Rexroth |
| BD-1750F | LC-1-28A | Lynair, Inc. |
| BD-1750F | C1800-79G | Peninsular Cylinder Co. |
| BD-1750F | AC1750 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-1750F | 1337390175 | Parker Cyl, Schrader Bellows |
| BD-1750F | cm-BD-1750 | Hercules Sealing Products |
| BD-1875F | BD-1875F | Hydrauic Cylinders Inc |
| BD-1875F | 1337390188 | Parker Cyl, Industrial |
| BD-1875F | R978935089 | Bosch Rexroth |
| BD-1875F | 526301-30 | Ortman Fluid Power |
| BD-1875F | AC-2-20 | Hydro-Line, acquired by Eaton 2000, acquired by Danfoss 2021 |
| BD-1875F | S-6 | Hanna Cylinders, acquired T. J. Brooks Co 1994 |
| BD-1875F | LC-1-30A | Lynair, Inc. |
| BD-1875F | C1900-79 | Peninsular Cylinder Co. |
| BD-1875F | AC1875 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
| BD-1875F | RAC-0187 | Sheffer Corporation |
| BD-1875F | cm-BD-1875 | Hercules Sealing Products |
| BD-2000F | BD-2000F | Hydrauic Cylinders Inc |
| BD-2000F | 1337390200 | Parker Cyl, Industrial |
| BD-2000F | R978935099 | Bosch Rexroth |
| BD-2000F | LC-1-32A | Lynair, Inc. |
| BD-2000F | C1801-79 | Peninsular Cylinder Co. |
| BD-2000F | AC2000 | Bimba, Acquired by IMI plc. in 2019, Bimba is now a part of Norgren |
