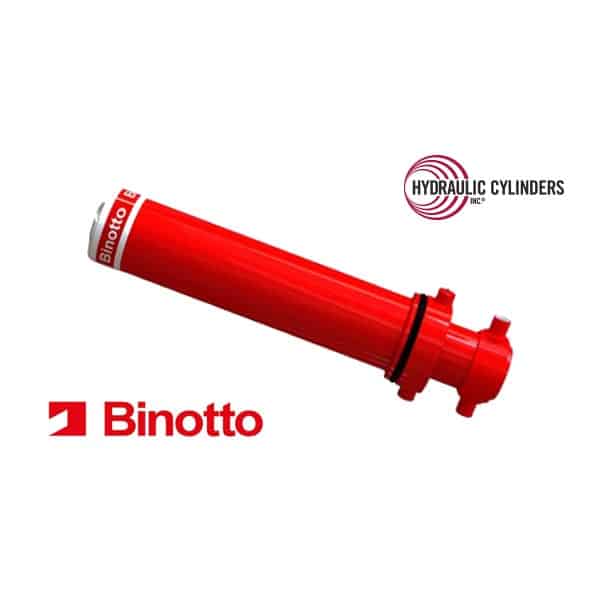

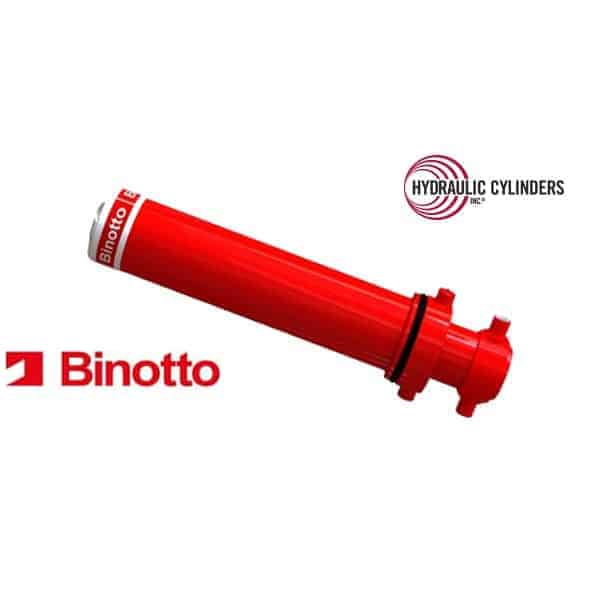

B3C 6.5-4-160-AV01 Binotto SAT Telescopic Cylinder
B3C 6.5-4-160-AV01 Binotto SAT Telescopic Cylinders
Call For Availabilty
Specifications for B3C 6.5-4-160-AV01
| Category | Replacement Telescopic Hydraulic Cylinders |
|---|---|
| Features | Cap Over / Cover Tube, Single-Acting Telescopic Hydraulic Cylinders (SAT) |
| SKU | B3C 6.5-4-160-AV01 |
|---|---|
| Weight | 490.0 lbs |
| Stroke | 157.80″ |
| Closed | 51.02″ |
| Open Extended Length | 208.82″ |

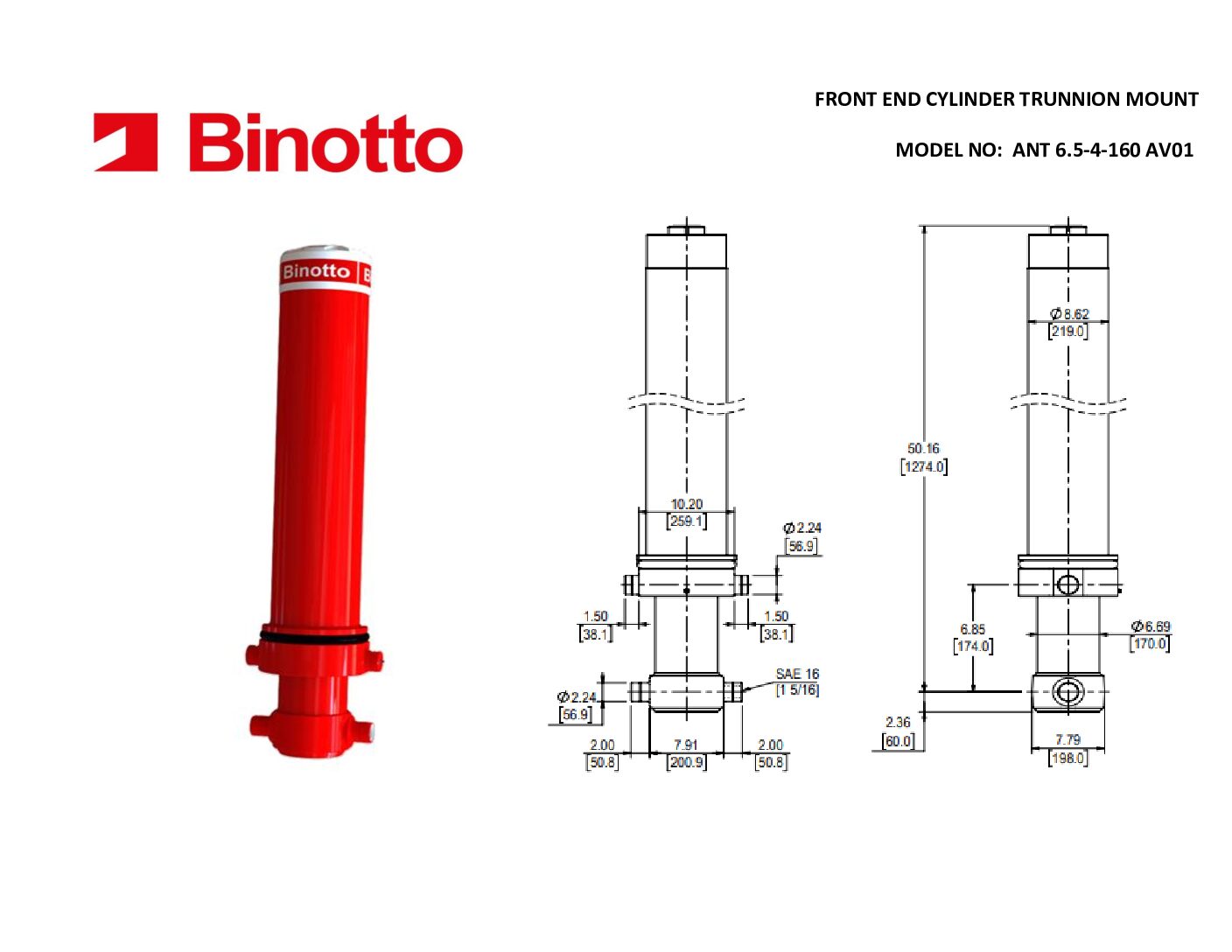

| Base End Mount Type | Trunnion |
| Rod End Mount Type | Trunnion |
| Trunnion Closed | 6.85 |
| Trunnion Open | 164.65 |
| Trunnion Width | 12.00 |
| Trunnion Pin Dia | 2.25 |
| Trunnion Pin Length | 2.00 |
