Description

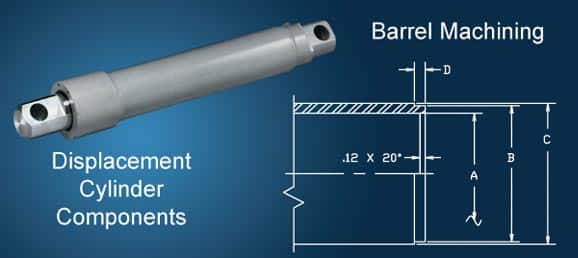

Barrel Machining Info
| Collar Number | A +.003″ -.003″ | B +.001″ -.001″ | C | D |
|---|---|---|---|---|
| 1320000675 | 2.000 | 2.308 | 2.50 | 0.38 |
| 1320000676 | 2.500 | 2.937 | 3.00 | 0.25 |
| 1320000677 | 3.000 | 3.433 | 3.50 | 0.25 |
| 1320000678 | 3.500 | 3.937 | 4.00 | 0.25 |
| 1320000679 | 4.000 | 4.433 | 4.50 | 0.25 |

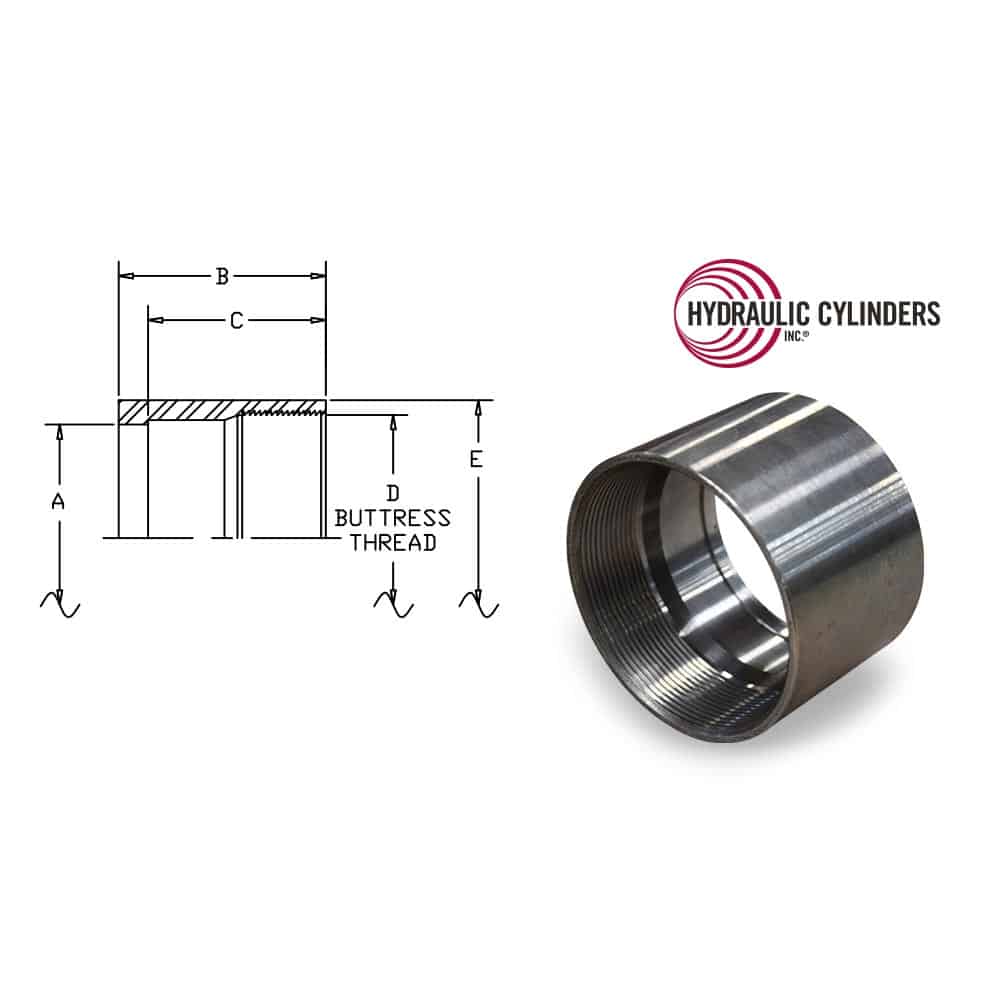

Collar
$101.00 – $162.00
Specifications for
| Categories | Collar, Displacement Cylinder Components, Replacement Hydraulic Cylinder Component Parts & Accessories |
|---|
Product Variations
| SKU | A | B | C | D | E | Weld Size | List Price |
|---|---|---|---|---|---|---|---|
| 1320000675 | 2.311 | 2.44 | 2.06 | 2-3/4″-12 | 3.00 | 1/4" | $101.00 |
| 1320000676 | 2.940 | 2.38 | 2.12 | 3-1/4″-12 | 3.50 | 1/4" | $109.00 |
| 1320000677 | 3.436 | 2.50 | 2.25 | 3-3/4"-12 | 4.00 | 1/4" | $131.00 |
| 1320000678 | 3.940 | 2.50 | 2.25 | 4-1/4"-12 | 4.50 | 1/4" | $147.00 |
| 1320000679 | 4.436 | 2.38 | 2.12 | 4-3/4"-12 | 5.12 | 5/16" | $162.00 |
