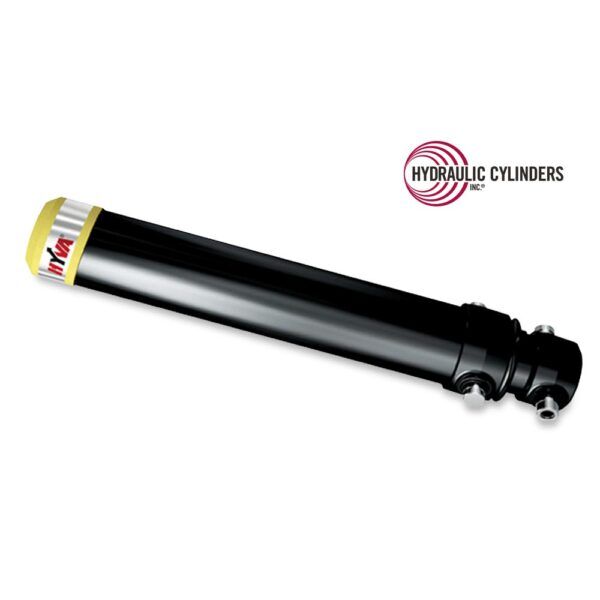

70523133 (Hyva) SAT Telescopic Cylinders

Call For Availabilty

Specifications for FC A4.5-3-101-K6-HC

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Manufacturer Hyva
Function Dump Hoist / Body Raise / Tipping
Type Dump
Features Cap Over / Cover Tube, Single-Acting Telescopic Hydraulic Cylinders (SAT)
SKU FC A4.5-3-101-K6-HC
Weight 260 lbs
Base End Mount Type

Trunnion

Closed

46.42″

Extend Port/Plunger

-12 SAE ORB Out Base Trunnion

Open Extended Length

147.32″

Rod End Mount Type

Trunnion

Tele Largest Stage OD

4″

Telescopic Number of Stages

3

Telescopic Stroke

101″

Trunnion Closed

5.51

Trunnion Pin Dia

1.87

Trunnion Pin Length

2

Trunnion Width

9.75

Description

70523133 FC A4.5-3-101-K6-HC single-acting telescopic dump cylinders feature trunnion mounts, 3 telescopic stages, 101-in. stroke length, and weighs 260lbs.



Compatible Replacement Cylinders for #FC A4.5-3-101-K6-HC

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
094-1018-0 FC A4.5-3-101-K6-HC Hyco Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
15-01-0018 FC A4.5-3-101-K6-HC Lanau Lanau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
15-01-0085 FC A4.5-3-101-K6-HC Lanau Lanau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
3771513131 FC A4.5-3-101-K6-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
3771513147 FC A4.5-3-101-K6-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
5000115 FC A4.5-3-101-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
5000259 FC A4.5-3-101-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
70523133 FC A4.5-3-101-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
71503105 FC A4.5-3-101-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
81159 FC A4.5-3-101-K6-HC Henderson Products, Inc., a division of Douglas Dynamics, Inc. Henderson Products, Inc., a division of Douglas Dynamics, Inc. Mark Two 11 Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS 100-4-3 FC A4.5-3-101-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CS100-4-3 FC A4.5-3-101-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
CYLM1004533 FC A4.5-3-101-K6-HC Bibeau Bibeau Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 110-3-02490-599a-k0130-hc FC A4.5-3-101-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC 4.5-3-98-HC FC A4.5-3-101-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A110-3-02560-594-K0140-HC FC A4.5-3-101-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC A4.5-3-101-K6-HC FC A4.5-3-101-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-110-3-02490-599a-k0130-hc FC A4.5-3-101-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC-4.5-3-98-HC FC A4.5-3-101-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC110-3-02490-599a-k0130-hc FC A4.5-3-101-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
FC4.5-3-98-HC FC A4.5-3-101-K6-HC Hyva Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M 100-4.5-3 FC A4.5-3-101-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M100-4.5-3 FC A4.5-3-101-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
M98-4-3 FC A4.5-3-101-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
NTC-100-4-3 FC A4.5-3-101-K6-HC Nordic / Nordsen Nordic / Nordsen Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0400983VM0259 FC A4.5-3-101-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0451003VM0115 FC A4.5-3-101-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PM0451003VM0413 FC A4.5-3-101-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
PS0401003VM0037 FC A4.5-3-101-K6-HC Mailhot Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
S53MM-1G-100 FC A4.5-3-101-K6-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
S53MM-2G-100 FC A4.5-3-101-K6-HC Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
SA100-4.5-3-TT-49.25-6.62 FC A4.5-3-101-K6-HC Hyco Miscellaneous Manufacturers Dump Truck Equipment Hyva SAT-CT Cap Over, Cover Tube Dump Hoist, Body Raise, Tipper
