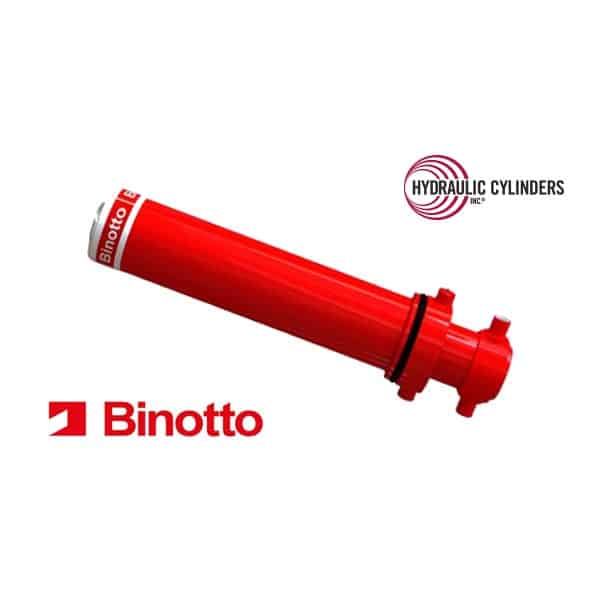

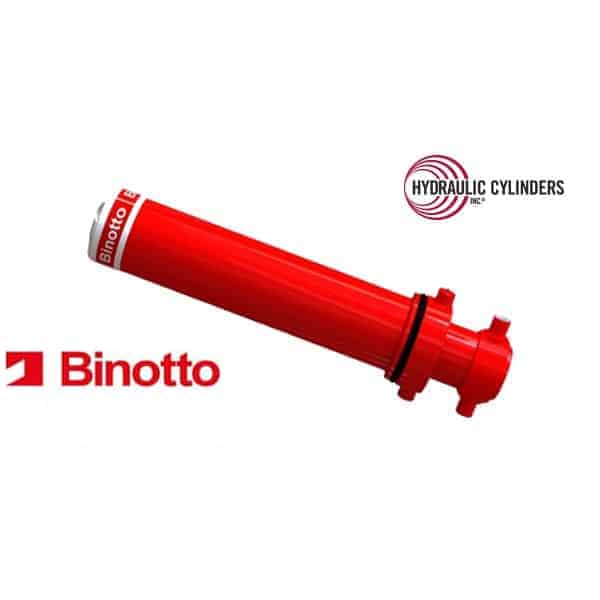

B3C 4.5-3-090-AV01 Binotto SAT Telescopic Cylinders

$2,027.00

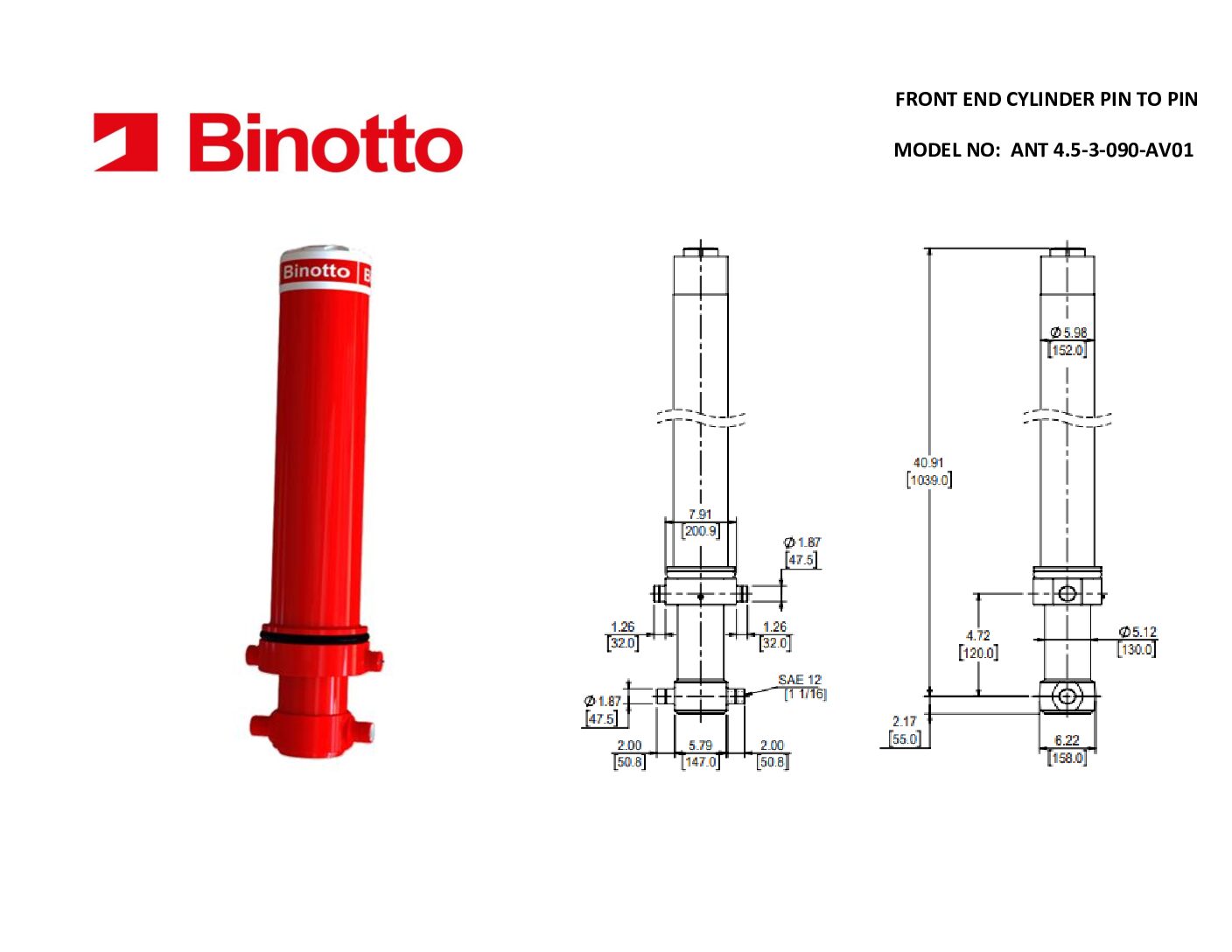

Specifications for B3C 4.5-3-090-AV01

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Type Dump
Features Single-Acting Telescopic Hydraulic Cylinders (SAT), Trunnion
SKU B3C 4.5-3-090-AV01
Weight 250.0 lbs
Base End Mount Type

Trunnion

Closed

41.25″

Extend Port/Plunger

-12 SAE ORB Out Base of Trunnion

Open Extended Length

131.25″

Rod End Mount Type

Trunnion

Tele Largest Stage OD

4"”

Telescopic Number of Stages

3

Telescopic Stroke

90"”

Trunnion Closed

5.25

Trunnion Open

95.25"

Trunnion Pin Dia

1.87

Trunnion Pin Length

2.00

Trunnion Width

9.75

Description

B3C 4.5-3-090-AV01 is a single-acting telescopic dump hoist cylinder that replaces Hyva FC A4.5-3-91-K6-HC.
