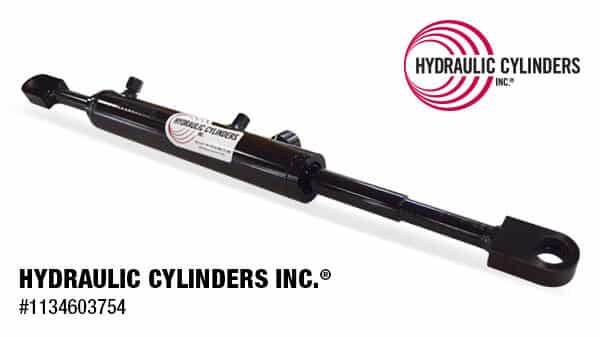

Replacement Hydraulic Bob-Tach Cylinder for Bobcat (PN: 7415655) Models S450-S850 Series, T450-T870 Series, A770

Replacement Bob-Tach Hydraulic Cylinder for Bobcat 7307224
  • Replacement Bob-Tach Hydraulic Cylinder for Bobcat 7307224
  • Replacement Bob-Tach Hydraulic Cylinder for Bobcat 7307224

$625.00

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1134603754

Categories Replacement Welded Rod Hydraulic Cylinders, Skid Steer/Compact Track Loader
Fits Manufacturer Bobcat Hydraulic Cylinders
Models Bobcat A770, Bobcat S450, Bobcat S510, Bobcat S530, Bobcat S550, Bobcat S570, Bobcat S590, Bobcat S595, Bobcat S630, Bobcat S650, Bobcat S740, Bobcat S750, Bobcat S770, Bobcat S850, Bobcat T450, Bobcat T550, Bobcat T590, Bobcat T595, Bobcat T630, Bobcat T650, Bobcat T740, Bobcat T750, Bobcat T770, Bobcat T870
Function Quick Attach
Type Skid Steer/Compact Track Loader
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1134603754
Weight 24 lbs
Bore

1.50″
Rod

1.00″
Stroke

6.25″
Closed

27.00″
Open Extended Length

33.25″
Operating Pressure (PSI)

3000
Base End Mount Type

Drilled Thru Lug
Base Pin Size

1.00″
Base Mount Width

0.83″
Rod End Mount Type

Drilled Thru Lug
Rod Pin Size

1.00″
Rod Mount Width

0.83″
Extend Port/Plunger

-6 JIC
Retract Port/Plunger

-6 SAE ORB 90D
Old OEM PNs

7227530, 7227570, 7307224, 7362530

Description

The replacement Bob-Tach hydraulic cylinder (OEM Part Number: 7415655) is designed for Bobcat loaders, including S450–S850 skid steers, T450–T870 compact track loaders, and the A770 model. Built with high-performance durability, it meets or exceeds OEM standards. This USA-manufactured, steel-built cylinder ensures reliable attachment locking and serves as a direct replacement for OEM specifications.

Bore:

1.50″

Rod:

1.00″

Stroke:

6.25″

Closed:

27.00″

Open Extended Length:

33.25″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Lug

Base Pin Size:

1.00″

Base Mount Width:

0.83″

Rod End Mount Type:

Drilled Thru Lug

Rod Pin Size:

1.00″

Rod Mount Width:

0.83″

Extend Port/Plunger:

-6 JIC

Retract Port/Plunger:

-6 SAE ORB 90D

Old OEM PNs:

7227530, 7227570, 7307224, 7362530

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

Limited Warranty

Many products available through Hydraulic Cylinders Inc. are warranted by their individual manufacturers.

  • Disassembling parts voids warranties.
  • Returns found to be due to misuse or misapplication are not covered.

Hydraulic Cylinders Inc. does not warrant or provide engineering advice as to the fitness and purpose of any product for any customer’s application of use. Hydraulic Cylinders Inc. is not responsible for determining the applicability of any product for use, including any product purchased from Hydraulic Cylinders Inc. under all circumstances and regardless of any presale statements made by customers as to the anticipated use of any product. It is the customer’s responsibility to rely solely on its own engineers or retained consultants in regards to whether any product purchased from Hydraulic Cylinders Inc. meets any and all federal, state, or local rule, regulation, standard, or need, use and applicability.
