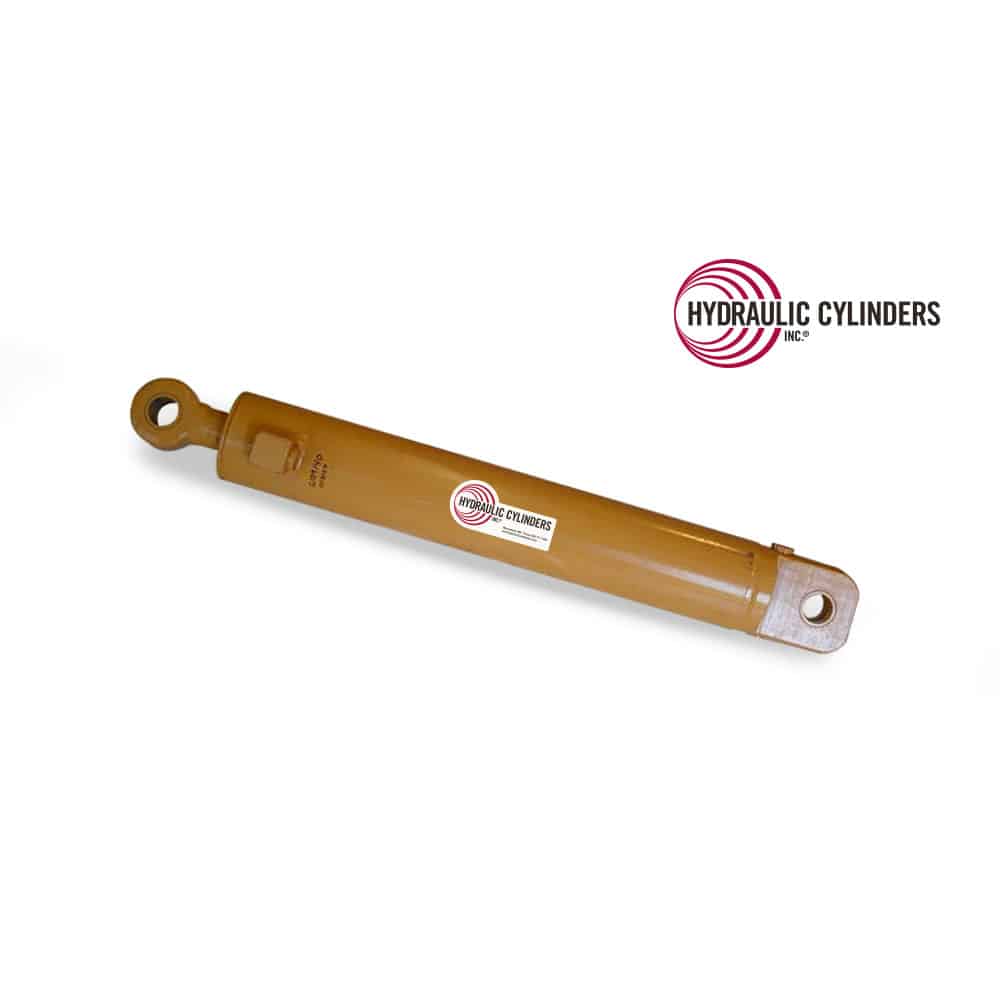

Replacement Hydraulic LH Stabilizer Cylinder for Case (PN: G109140) Backhoe Loader Models 35C, 580D, 580E, 580SD, 580SE
$1,286.00
Specifications for HCI-G109140
Categories | Backhoe, Backhoe Loader Attachment, Loader/Tractor, Replacement Welded Rod Hydraulic Cylinders |
---|---|
Fits Manufacturer | Case |
Models | Case 35C, Case 580D, Case 580E, Case 580G, Case 580SD, Case 580SE |
Function | Outrigger Stabilizer Jackleg LH |
Type | Backhoe Loader Attachment |
Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
SKU | HCI-G109140 |
---|---|
Weight | 100.0 lbs |
Bore | 4.00″ |
---|---|
Rod | 2.00″ |
Stroke | 21.125″ |
Closed | 34.00″ |
Open Extended Length | 55.125″ |
Base End Mount Type | Drilled Thru Lug |
Base Pin Size | 1.50″ |
Base Mount Width | 2.00″ |
Rod End Mount Type | Cross-Tube |
Rod Pin Size | 1.50″ |
Rod Mount Width | 2.00″ |
Extend Port/Plunger | -10 SAE ORB |
Retract Port/Plunger | -10 SAE ORB |
Old OEM PNs | G103252 |
Description
Designed to replace OEM part PN: G109140, this right-hand outrigger stabilizer cylinder is compatible with Case 35C compact backhoe loaders and 580D, 580E, 580G, 580SD, and 580SE loader backhoes. It ensures smooth stabilizer operation and meets OEM specifications, offering a reliable solution for equipment maintenance.
4.00″
2.00″
21.125″
34.00″
55.125″
Drilled Thru Lug
1.50″
2.00″
Cross-Tube
1.50″
2.00″
-10 SAE ORB
-10 SAE ORB
G103252
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Limited Warranty
Many products available through Hydraulic Cylinders Inc. are warranted by their individual manufacturers.
- Disassembling parts voids warranties.
- Returns found to be due to misuse or misapplication are not covered.
Hydraulic Cylinders Inc. does not warrant or provide engineering advice as to the fitness and purpose of any product for any customer’s application of use. Hydraulic Cylinders Inc. is not responsible for determining the applicability of any product for use, including any product purchased from Hydraulic Cylinders Inc. under all circumstances and regardless of any presale statements made by customers as to the anticipated use of any product. It is the customer’s responsibility to rely solely on its own engineers or retained consultants in regards to whether any product purchased from Hydraulic Cylinders Inc. meets any and all federal, state, or local rule, regulation, standard, or need, use and applicability.
