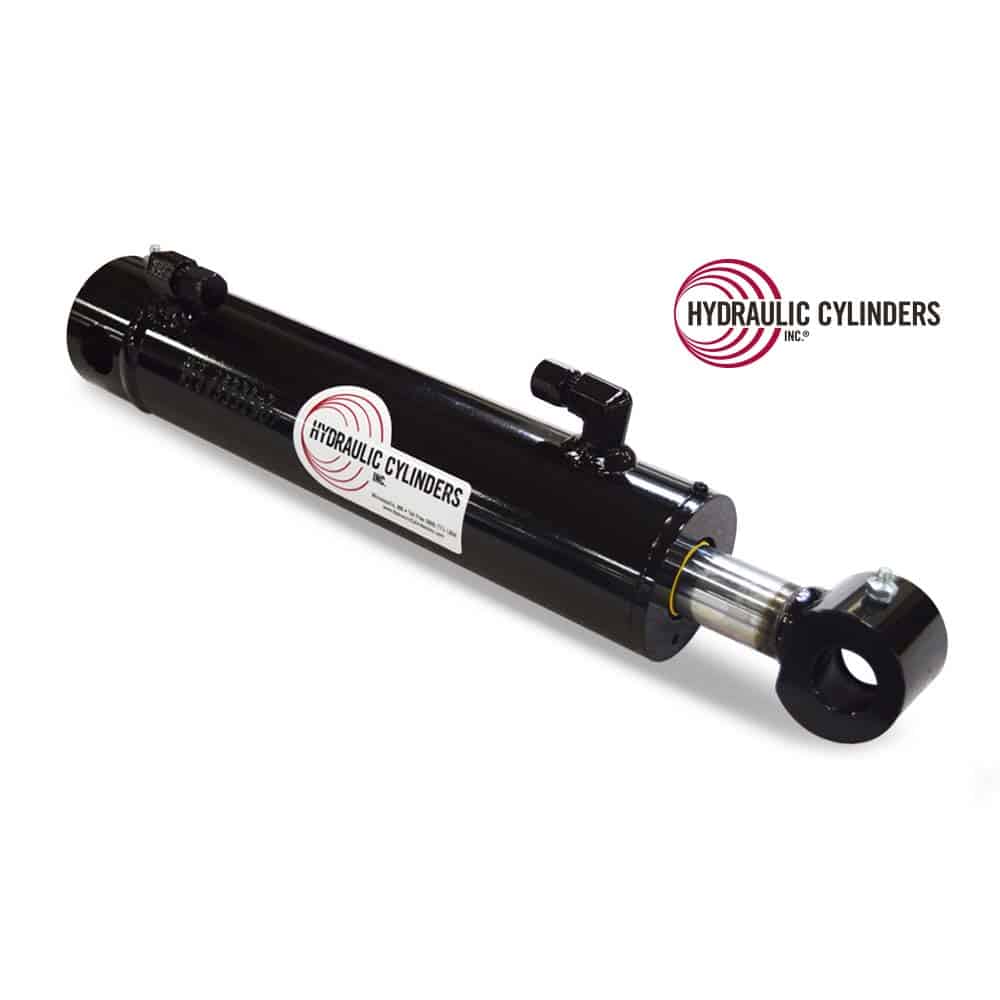

Replacement Hydraulic Combination Bucket Cylinder for Bobcat (PN: 7156128) Skid Steer 60, 62, 66, 68, 74, 80 and 84 inch Combination Buckets
$595.00
Specifications for 1485331907
| SKU | 1485331907 |
|---|---|
| Weight | 32 lbs |
| Bore | 2.50″ |
|---|---|
| Rod | 1.25″ |
| Stroke | 8.00″ |
| Closed | 24.25″ |
| Open Extended Length | 32.25″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.00″ |
| Base Mount Width | 3.00″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 2.00″ |
| Extend Port/Plunger | -6 JIC 90D |
| Retract Port/Plunger | -6 JIC 90D |
| Old OEM PNs | 6808218, 6815651, 6818258, 7147421 |
Description
This replacement hydraulic combination bucket cylinder (OEM part number 6815651) is compatible with Bobcat skid steers equipped with 60 to 84-inch combination buckets. Built with all-steel components and made in the USA, it offers long-lasting durability and dependable performance.
2.50″
1.25″
8.00″
24.25″
32.25″
3000
Drilled Thru Base
1.00″
3.00″
Cross-Tube
1.00″
2.00″
-6 JIC 90D
-6 JIC 90D
6808218, 6815651, 6818258, 7147421
