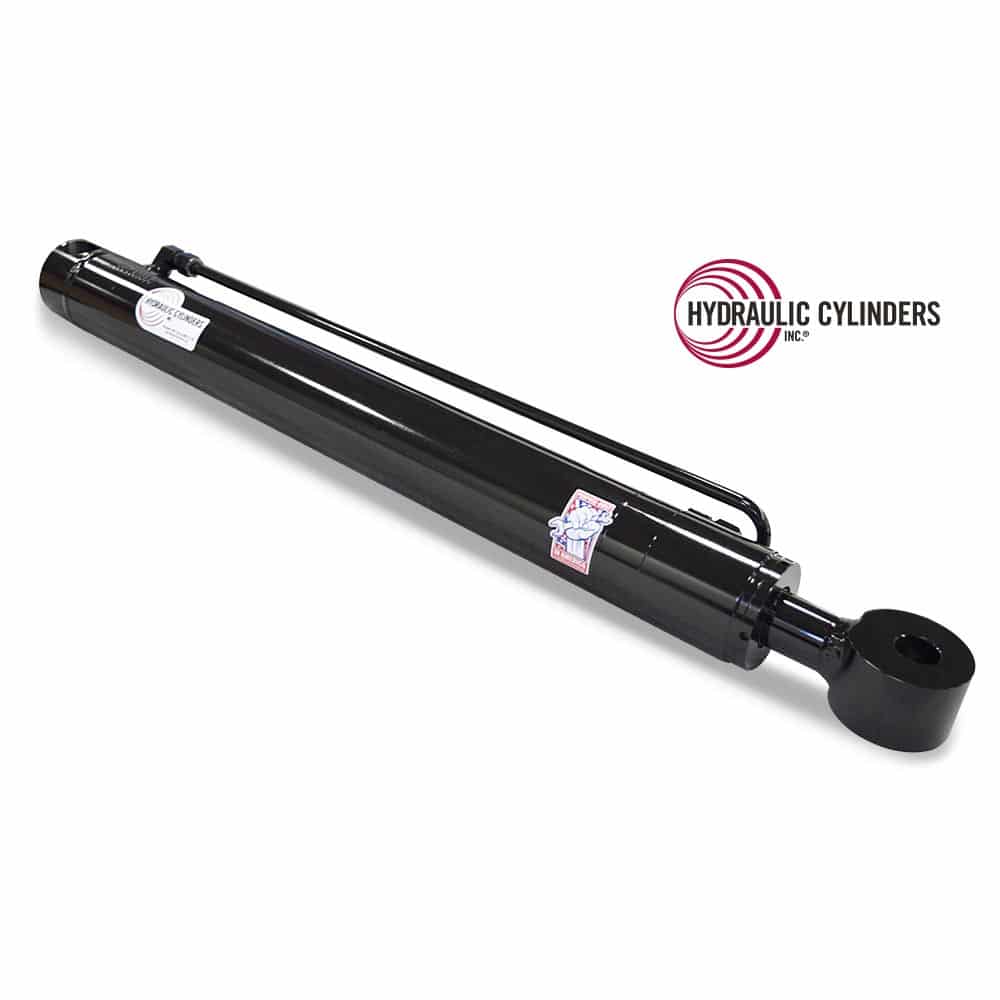

Replacement Hydraulic Boom Arm Lift Hoist Cylinder for Bobcat (PN: 7203496) Skid Steer Models S650, T650

Replacement Hydraulic Lift Cylinder for 7203496 Bobcat Skid Steer
  • Replacement Hydraulic Lift Cylinder for 7203496 Bobcat Skid Steer
  • Replacement Hydraulic Lift Cylinder for 7203496 Bobcat Skid Steer

$1,200.00

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1204569384

Categories Replacement Welded Rod Hydraulic Cylinders, Skid Steer/Compact Track Loader
Fits Manufacturer Bobcat Hydraulic Cylinders
Models Bobcat S650, Bobcat T650
Function Boom Arm Lift
Type Skid Steer/Compact Track Loader
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1204569384
Weight 81 lbs
Bore

3.00″
Rod

1.75″
Stroke

25.00″
Closed

37.50″
Open Extended Length

62.50″
Operating Pressure (PSI)

3000
Base End Mount Type

Drilled Thru Base
Base Pin Size

1.50″
Base Mount Width

3.625″
Rod End Mount Type

Cross-Tube
Rod Pin Size

1.25″
Rod Mount Width

2.25″
Extend Port/Plunger

-8 JIC
Retract Port/Plunger

-8 JIC
Old OEM PNs

7203496

Description

This hydraulic lift cylinder replaces Bobcat OEM part number 7203496, compatible with skid steer loader models S650 and T650. Manufactured in the USA with durable all-steel construction, it meets or exceeds OEM standards, delivering reliable lifting performance, superior durability, and consistent operation even in demanding conditions.

Bore:

3.00″

Rod:

1.75″

Stroke:

25.00″

Closed:

37.50″

Open Extended Length:

62.50″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Base

Base Pin Size:

1.50″

Base Mount Width:

3.625″

Rod End Mount Type:

Cross-Tube

Rod Pin Size:

1.25″

Rod Mount Width:

2.25″

Extend Port/Plunger:

-8 JIC

Retract Port/Plunger:

-8 JIC

Old OEM PNs:

7203496
