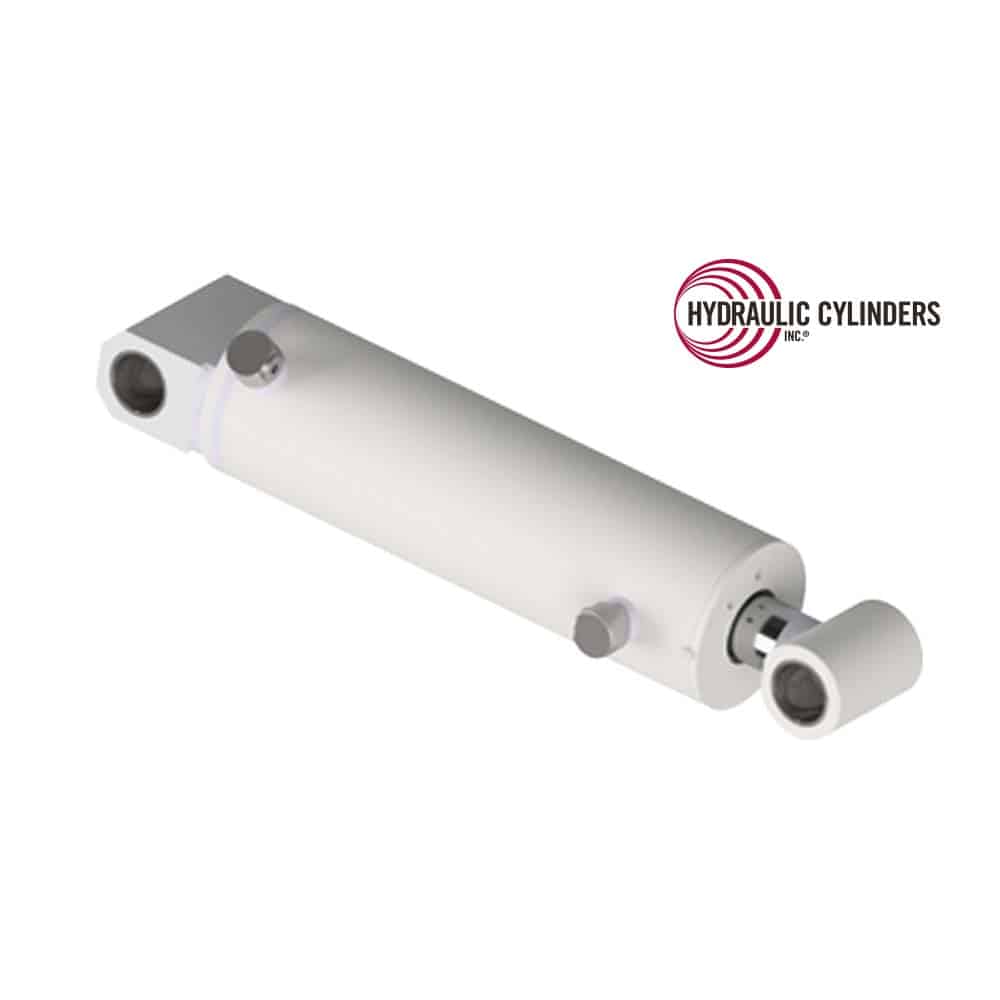

Replacement Hydraulic Master Leveling Cylinder for Snorkel (PN: 0074799) Manlift Models TB42, TB47J, T80, T80J, TB85J

Call For Availabilty

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1571009519

Categories Manlift/Aerial Device, Other, Replacement Welded Rod Hydraulic Cylinders
Fits Manufacturer Snorkel
Models Snorkel T80, Snorkel T80J, Snorkel TB42, Snorkel TB47J, Snorkel TB85J
Function Master Leveling
Type Manlift
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1571009519
Weight 65 lbs

Bore

4.00″

Rod

1.75″

Stroke

9.50″

Closed

20.00″

Open Extended Length

29.50″

Base End Mount Type

Cross-Tube

Base Pin Size

1.50″

Base Mount Width

4.25″

Rod End Mount Type

Cross-Tube

Rod Pin Size

1.50″

Rod Mount Width

3.50″

Extend Port/Plunger

-6 SAE ORB

Retract Port/Plunger

-6 SAE ORB

Old OEM PNs

0172223

Description

This hydraulic master leveling cylinder, compatible with OEM part number 2001007, supports Snorkel manlift models TB42, TB47J, T80, T80J and TB85J. It’s engineered to meet or exceed OEM standards, providing the reliability and efficiency needed for complex leveling tasks. With this replacement, you can maintain optimal performance and extend the service life of your Snorkel equipment.

Bore:

4.00″

Rod:

1.75″

Stroke:

9.50″

Closed:

20.00″

Open Extended Length:

29.50″

Base End Mount Type:

Cross-Tube

Base Pin Size:

1.50″

Base Mount Width:

4.25″

Rod End Mount Type:

Cross-Tube

Rod Pin Size:

1.50″

Rod Mount Width:

3.50″

Extend Port/Plunger:

-6 SAE ORB

Retract Port/Plunger:

-6 SAE ORB

Old OEM PNs:

0172223
