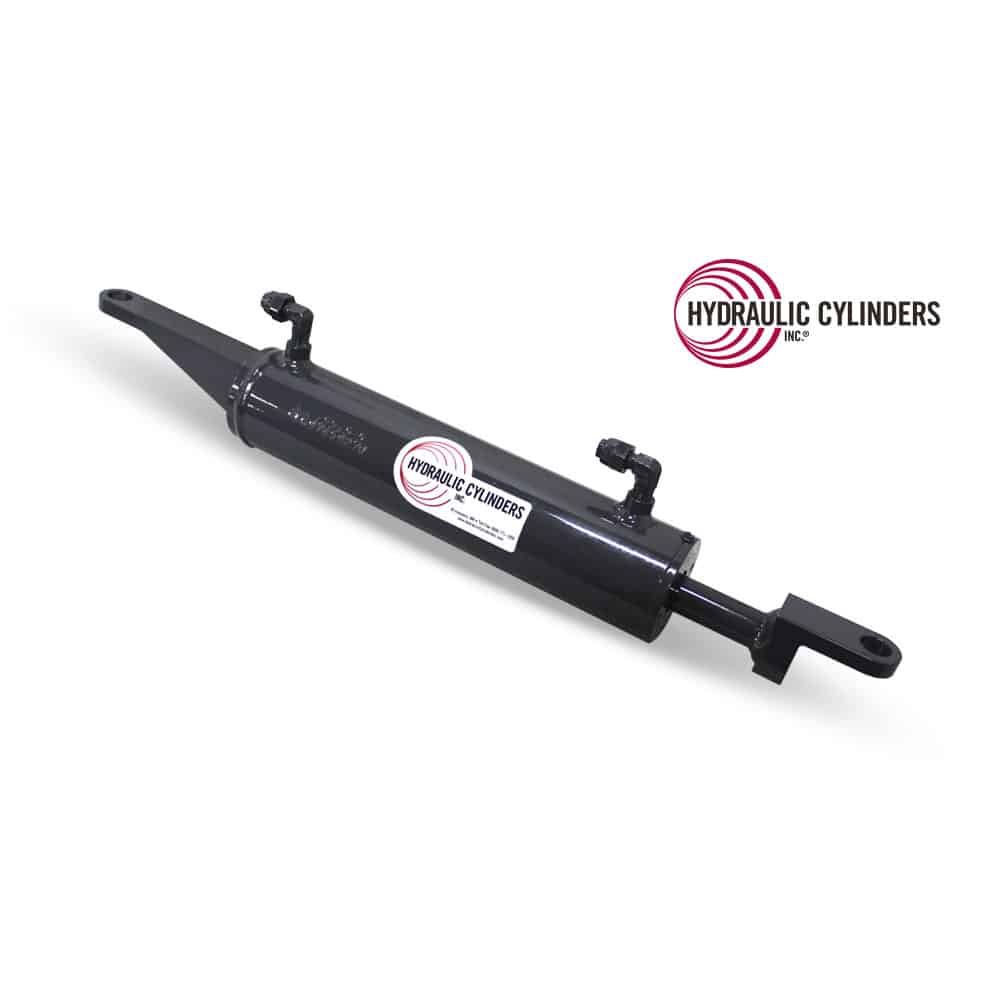

Replacement Hydraulic Quick Hitch Cylinder for Kubota (PN: YW663-00102) Skid Steer Models SVL75-SVL95 Series

Replacement Hydraulic Quick Hitch Cylinder for Kubota YW663-00102
  • Replacement Hydraulic Quick Hitch Cylinder for Kubota YW663-00102
  • Replacement Hydraulic Quick Hitch Cylinder for Kubota YW663-00102

$1,150.00

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1697459270

Categories Replacement Welded Rod Hydraulic Cylinders, Skid Steer/Compact Track Loader
Fits Manufacturer Kubota Hydraulic Cylinders
Models Kubota SVL75, Kubota SVL75-2, Kubota SVL75-2C, Kubota SVL75C, Kubota SVL90, Kubota SVL90-2, Kubota SVL90-2C, Kubota SVL90C, Kubota SVL95-2S, Kubota SVL95-2SC
Function Quick Hitch
Type Skid Steer/Compact Track Loader
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1697459270
Weight 30 lbs
Bore

65mm
Rod

25mm
Stroke

9.375″
Closed

24.50″
Open Extended Length

33.875″
Operating Pressure (PSI)

3000
Base End Mount Type

Drilled Thru Lug
Base Pin Size

.75″
Base Mount Width

.47″
Rod End Mount Type

Drilled Thru Lug
Rod Pin Size

.75″
Rod Mount Width

.47″
Extend Port/Plunger

1/4 BSPP 90D
Retract Port/Plunger

1/4 BSPP 90D
Old OEM PNs

V0521-75610, YW439-00100, YW663-00100

Description

This replacement hydraulic quick hitch cylinder fits Kubota SVL75, SVL75-2, SVL75-2C, SVL75C, SVL90, SVL90-2, SVL90-2C, SVL90C, SVL95-2S, and SVL95-2SC compact track loaders. Engineered to replace OEM Part Number YW663-00102, it meets or exceeds OEM specifications, delivering durable and reliable quick hitch operation for efficient equipment handling.

Bore:

65mm

Rod:

25mm

Stroke:

9.375″

Closed:

24.50″

Open Extended Length:

33.875″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Lug

Base Pin Size:

.75″

Base Mount Width:

.47″

Rod End Mount Type:

Drilled Thru Lug

Rod Pin Size:

.75″

Rod Mount Width:

.47″

Extend Port/Plunger:

1/4 BSPP 90D

Retract Port/Plunger:

1/4 BSPP 90D

Old OEM PNs:

V0521-75610, YW439-00100, YW663-00100

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

Limited Warranty

Many products available through Hydraulic Cylinders Inc. are warranted by their individual manufacturers.

  • Disassembling parts voids warranties.
  • Returns found to be due to misuse or misapplication are not covered.

Hydraulic Cylinders Inc. does not warrant or provide engineering advice as to the fitness and purpose of any product for any customer’s application of use. Hydraulic Cylinders Inc. is not responsible for determining the applicability of any product for use, including any product purchased from Hydraulic Cylinders Inc. under all circumstances and regardless of any presale statements made by customers as to the anticipated use of any product. It is the customer’s responsibility to rely solely on its own engineers or retained consultants in regards to whether any product purchased from Hydraulic Cylinders Inc. meets any and all federal, state, or local rule, regulation, standard, or need, use and applicability.
