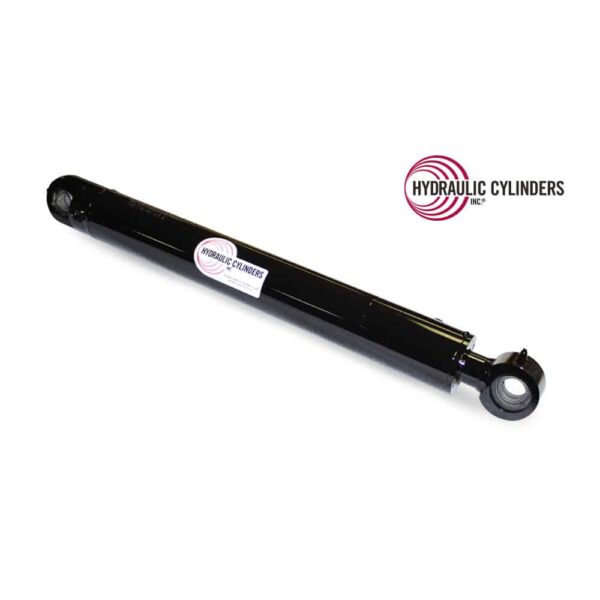

Replacement Hydraulic Thumb / Bucket Clamp Cylinder for John Deere and Hitachi (PN: AHC18100) Excavator Models 50C-60G Series, ZX50-60 Series
$1,500.00
Specifications for 1854080613
| Categories | Compact Excavator, Excavator, Replacement Welded Rod Hydraulic Cylinders |
|---|---|
| Fits Manufacturer | John Deere |
| Models | Hitachi ZX50U-5N, Hitachi ZX60USB-5N, John Deere 50C ZTS, John Deere 50D, John Deere 50G, John Deere 60D, John Deere 60G |
| Function | Thumb / Bucket Clamp |
| Types | Excavator, Excavator - Compact |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1854080613 |
|---|---|
| Weight | 40 lbs |
| Bore | 2.25″ |
|---|---|
| Rod | 36MM” |
| Stroke | 16.75″ |
| Closed | 25.125″ |
| Open Extended Length | 41.875″ |
| Operating Pressure (PSI) | 2500 |
| Base End Mount Type | Spherical Bearing |
| Base Pin Size | 1.00″ |
| Base Mount Width | 1.25″ |
| Rod End Mount Type | Spherical Bearing |
| Rod Pin Size | 1.00″ |
| Rod Mount Width | 1.525″ |
| Extend Port/Plunger | -6 SAE ORB |
| Retract Port/Plunger | -6 SAE ORB 90D |
| Old OEM PNs | AH216808, AT260404, AT309148 |
Description
This replacement hydraulic thumb cylinder is designed for John Deere 50C ZTS, 50D, 50G, 60D, 60G and Hitachi ZX50U-5N, ZX60USB-5N excavators. Serving as a direct replacement for OEM Part Number AHC18100, it meets or exceeds OEM standards, ensuring reliable performance and durability. Built for demanding excavation tasks, this cylinder delivers smooth and efficient thumb operation.
2.25″
36MM”
16.75″
25.125″
41.875″
2500
Spherical Bearing
1.00″
1.25″
Spherical Bearing
1.00″
1.525″
-6 SAE ORB
-6 SAE ORB 90D
AH216808, AT260404, AT309148
