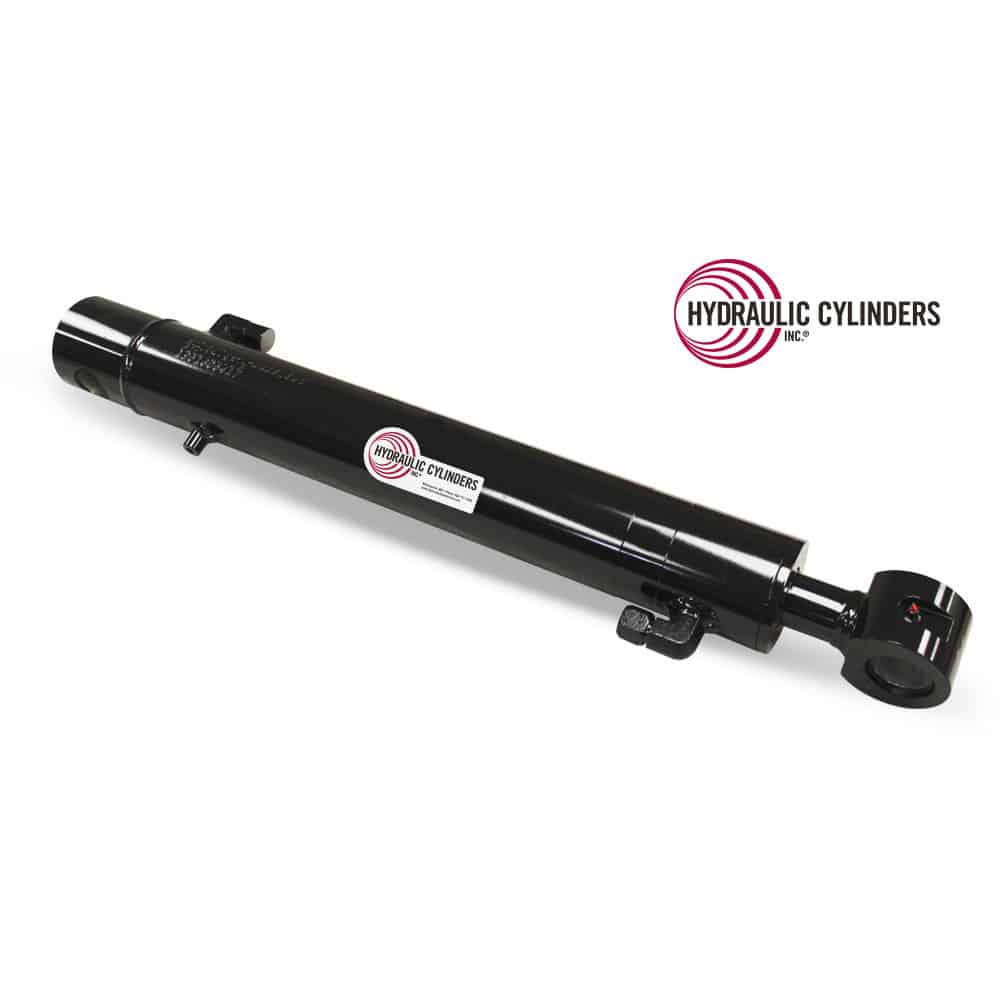

Replacement Hydraulic Bucket Tilt Cylinder for Bobcat (PN: 6803693) Compact Excavator Models 325, 328
$1,195.00
Specifications for 1951805417
| Categories | Compact Excavator, Excavator, Replacement Welded Rod Hydraulic Cylinders |
|---|---|
| Fits Manufacturer | Bobcat Hydraulic Cylinders |
| Models | Bobcat 325, Bobcat 328 |
| Function | Bucket Tilt |
| Type | Excavator - Compact |
| Features | Double-Acting Rod Hydraulic Cylinder (DAR) |
| SKU | 1951805417 |
|---|---|
| Weight | 49 lbs |
| Bore | 2.75″ |
|---|---|
| Rod | 1.50″ |
| Stroke | 17.00″ |
| Closed | 26.563″ |
| Open Extended Length | 43.563″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Drilled Thru Base |
| Base Pin Size | 1.375″ |
| Base Mount Width | 3.25″ |
| Rod End Mount Type | Cross-Tube |
| Rod Pin Size | 1.375″ |
| Rod Mount Width | 2.25″ |
| Extend Port/Plunger | -8 JIC 90D |
| Retract Port/Plunger | -8 JIC 90D |
| Old OEM PNs | 6595677 |
Description
This high-strength steel replacement tilt bucket cylinder fits Bobcat 325 and Bobcat 328 compact excavators, offering a direct fit for OEM Part Number 6803693. Manufactured to meet or exceed OEM standards, it ensures reliable operation and long service life. Proudly made in the USA, this cylinder guarantees superior craftsmanship for smooth and efficient performance.
2.75″
1.50″
17.00″
26.563″
43.563″
3000
Drilled Thru Base
1.375″
3.25″
Cross-Tube
1.375″
2.25″
-8 JIC 90D
-8 JIC 90D
6595677
