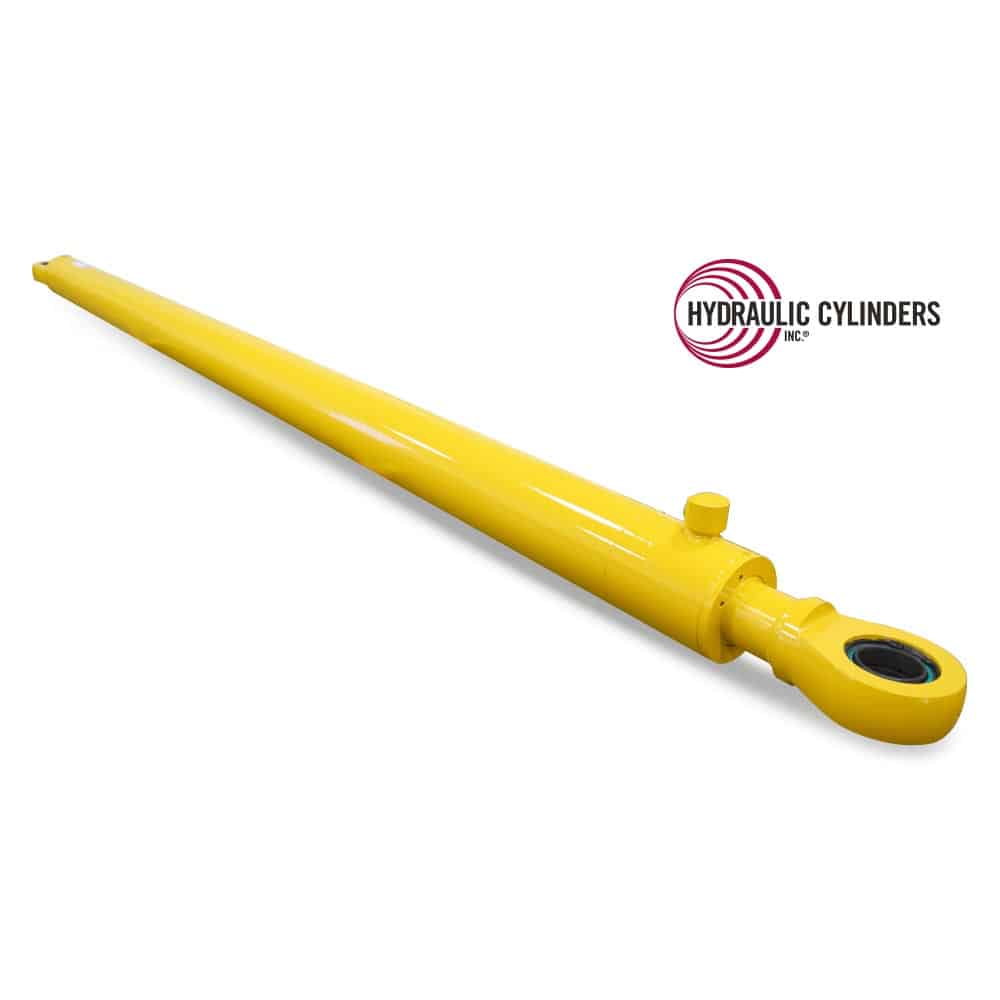

Replacement Hydraulic Dump Hoist, Body Raise, Tipping Cylinder for John Deere (PN: AH22013) Haul Truck Models 350D, 400D

1123443169
  • 1123443169
  • 1123443169

Call For Availabilty

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1016296746

Categories Dump (Welded Rod), Haul Truck / Off-Highway / Articulated, Replacement Welded Rod Hydraulic Cylinders
Fits Manufacturer John Deere
Models John Deere 350D, John Deere 400D
Function Dump Hoist / Body Raise / Tipping
Type Haul Truck / Off-Highway Dump - Articulated
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1016296746
Weight 867 lbs
Bore

125mm
Rod

85mm
Stroke

103.46″
Closed

125.51″
Open Extended Length

228.97″
Operating Pressure (PSI)

3000
Base End Mount Type

Drilled Thru Lug
Base Pin Size

70mm
Base Mount Width

60mm
Rod End Mount Type

Spherical Bearing
Rod Pin Size

70mm
Rod Mount Width

60mm
Extend Port/Plunger

-12 SAE ORB
Retract Port/Plunger

-12 SAE ORB 90D
Old OEM PNs

AH219623

Description

For John Deere haul truck models 350D and 400D, this hydraulic cylinder replaces OEM part number AH222013. It ensures exceptional durability and reliable performance, keeping your equipment in optimal working condition.

Bore:

125mm

Rod:

85mm

Stroke:

103.46″

Closed:

125.51″

Open Extended Length:

228.97″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Lug

Base Pin Size:

70mm

Base Mount Width:

60mm

Rod End Mount Type:

Spherical Bearing

Rod Pin Size:

70mm

Rod Mount Width:

60mm

Extend Port/Plunger:

-12 SAE ORB

Retract Port/Plunger:

-12 SAE ORB 90D

Old OEM PNs:

AH219623
