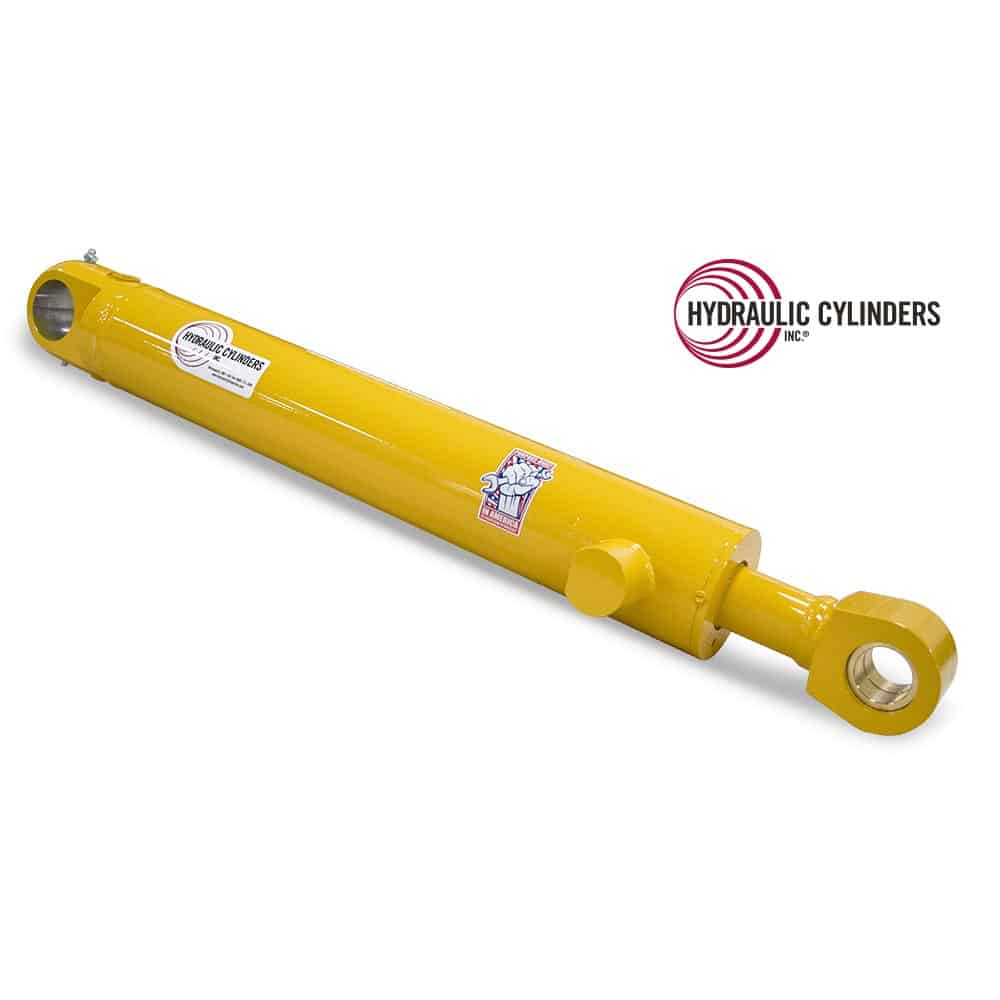

Replacement Hydraulic LH / RH Bucket Tilt Dump Cylinder for John Deere (PN: AH210329 LH / AH211461 RH) Skid Steer Models 280, 332, CT332

Double Acting Hydraulic Rod Cylinder
  • Double Acting Hydraulic Rod Cylinder
  • Double Acting Hydraulic Rod Cylinder
  • Double Acting Hydraulic Rod Cylinder
  • Double Acting Hydraulic Rod Cylinder
  • Double Acting Hydraulic Rod Cylinder

$1,550.00

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1163271398

Categories Replacement Welded Rod Hydraulic Cylinders, Skid Steer/Compact Track Loader
Fits Manufacturer John Deere
Models John Deere 280, John Deere 332, John Deere CT332
Function Bucket Tilt
Type Skid Steer/Compact Track Loader
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1163271398
Weight 67 lbs
Bore

80mm
Rod

45mm
Stroke

18.125″
Closed

30.50″
Open Extended Length

48.625″
Operating Pressure (PSI)

3000
Base End Mount Type

Drilled Thru Lug
Base Pin Size

62mm
Base Mount Width

2.375″
Rod End Mount Type

Cross-Tube
Rod Pin Size

35mm
Rod Mount Width

2.375″
Extend Port/Plunger

-10 SAE ORB
Retract Port/Plunger

-10 SAE ORB

Description

This right-hand universal hydraulic bucket tilt cylinder replaces John Deere OEM part number AH211461, compatible with skid steer models 280, 332, and CT332. Designed for precise bucket tilting, it ensures smooth operation and efficiency. Built to meet or exceed OEM standards, this component provides reliable performance and durability for demanding job site conditions.

Bore:

80mm

Rod:

45mm

Stroke:

18.125″

Closed:

30.50″

Open Extended Length:

48.625″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Lug

Base Pin Size:

62mm

Base Mount Width:

2.375″

Rod End Mount Type:

Cross-Tube

Rod Pin Size:

35mm

Rod Mount Width:

2.375″

Extend Port/Plunger:

-10 SAE ORB

Retract Port/Plunger:

-10 SAE ORB
