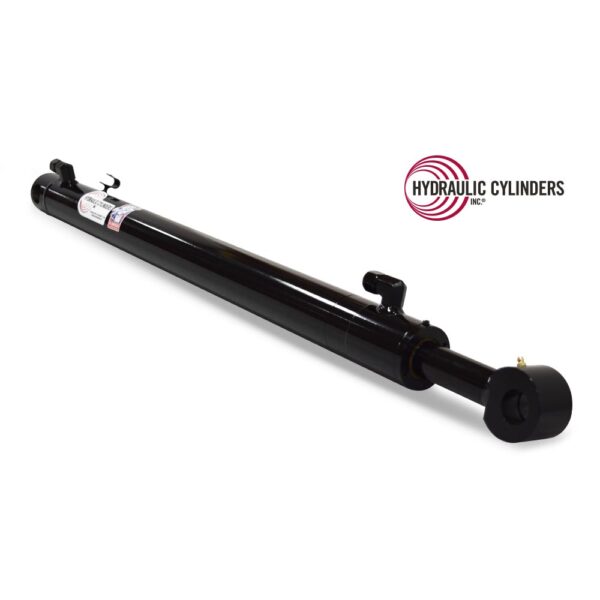

Replacement Hydraulic Boom Arm Lift Hoist Cylinder for Bobcat (PN: 6812504) Skid Steer Models 753, 763

Replacement Skid Steer Hydraulic Lift Cylinder for Bobcat 6589259
  • Replacement Skid Steer Hydraulic Lift Cylinder for Bobcat 6589259
  • Replacement Skid Steer Hydraulic Lift Cylinder for Bobcat 6589259

$885.00

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1003522009

Categories Replacement Welded Rod Hydraulic Cylinders, Skid Steer/Compact Track Loader
Fits Manufacturer Bobcat Hydraulic Cylinders
Models Bobcat 753, Bobcat 763
Function Boom Arm Lift
Type Skid Steer/Compact Track Loader
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1003522009
Weight 57 lbs
Bore

2.25″
Rod

1.50″
Stroke

27.875″
Closed

41.563″
Open Extended Length

69.438″
Operating Pressure (PSI)

3000
Base End Mount Type

Drilled Thru Base
Base Pin Size

1.25″
Base Mount Width

2.75″
Rod End Mount Type

Cross-Tube
Rod Pin Size

1.25″
Rod Mount Width

1.875″
Extend Port/Plunger

-8 JIC
Retract Port/Plunger

-8 JIC
Old OEM PNs

6589259

Description

Designed as a direct replacement for Bobcat OEM 6812504, this hydraulic lift cylinder is built for skid steer models 753 and 763. Made in the USA, it features an all-steel construction for superior durability and long-lasting performance. Ensure reliable lifting power and keep your equipment running smoothly with this high-quality replacement component.

Bore:

2.25″

Rod:

1.50″

Stroke:

27.875″

Closed:

41.563″

Open Extended Length:

69.438″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Base

Base Pin Size:

1.25″

Base Mount Width:

2.75″

Rod End Mount Type:

Cross-Tube

Rod Pin Size:

1.25″

Rod Mount Width:

1.875″

Extend Port/Plunger:

-8 JIC

Retract Port/Plunger:

-8 JIC

Old OEM PNs:

6589259

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

Limited Warranty

Many products available through Hydraulic Cylinders Inc. are warranted by their individual manufacturers.

  • Disassembling parts voids warranties.
  • Returns found to be due to misuse or misapplication are not covered.

Hydraulic Cylinders Inc. does not warrant or provide engineering advice as to the fitness and purpose of any product for any customer’s application of use. Hydraulic Cylinders Inc. is not responsible for determining the applicability of any product for use, including any product purchased from Hydraulic Cylinders Inc. under all circumstances and regardless of any presale statements made by customers as to the anticipated use of any product. It is the customer’s responsibility to rely solely on its own engineers or retained consultants in regards to whether any product purchased from Hydraulic Cylinders Inc. meets any and all federal, state, or local rule, regulation, standard, or need, use and applicability.
