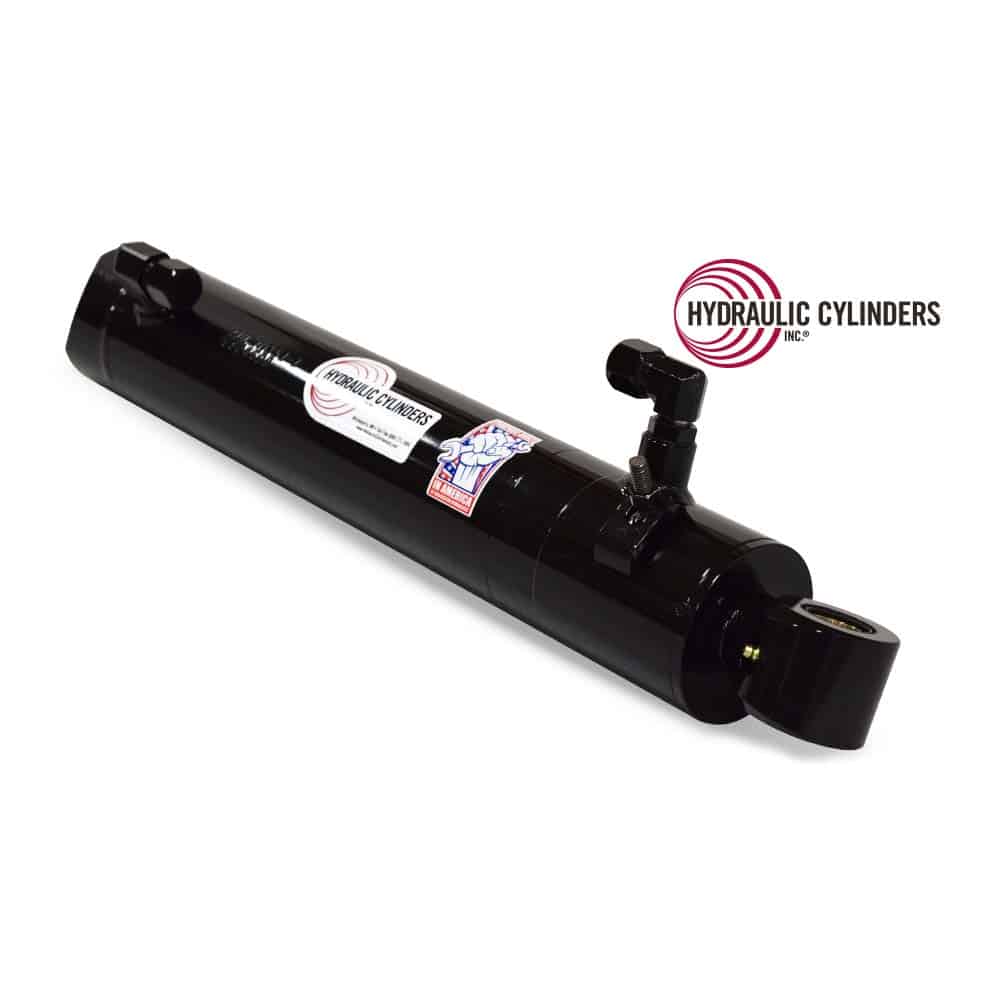

Replacement Hydraulic Bucket Tilt Dump Cylinder for Bobcat (PN: 6804692) Skid Steer Models 653, 751, 753

Replacement Hydraulic Bucket Tilt Dump Cylinder for Bobcat (PN: 6804692) Skid Steer Models 653, 751, 753

$1,595.00

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1009277007

Categories Replacement Welded Rod Hydraulic Cylinders, Skid Steer/Compact Track Loader
Fits Manufacturer Bobcat Hydraulic Cylinders
Models Bobcat 653, Bobcat 751, Bobcat 753
Function Bucket Tilt
Type Skid Steer/Compact Track Loader
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1009277007
Weight 49.6 lbs
Bore

3.25″
Rod

1.50″
Stroke

14.50″
Closed

22.25″
Open Extended Length

36.75″
Operating Pressure (PSI)

3000
Base End Mount Type

Drilled Thru Base
Base Pin Size

1.25″
Base Mount Width

4.00″
Rod End Mount Type

Cross-Tube
Rod Pin Size

1.25″
Rod Mount Width

2.125″
Extend Port/Plunger

-10 JIC 90D
Retract Port/Plunger

-10 JIC 90D
Old OEM PNs

6530912, 6530921, 6539078, 6539145, 6539147, 6586905, 6804692

Description

Designed for optimal performance, the Replacement Hydraulic Bucket Tilt Cylinder for Bobcat (PN# 6804692) from Hydraulic Cylinders, Inc. is a rugged, high-quality solution for your skid steer and compact truck loader needs. Built to meet OEM specifications, this cylinder provides seamless compatibility with multiple Bobcat models (listed below), ensuring smooth bucket operations with long-lasting reliability.

Bore:

3.25″

Rod:

1.50″

Stroke:

14.50″

Closed:

22.25″

Open Extended Length:

36.75″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Base

Base Pin Size:

1.25″

Base Mount Width:

4.00″

Rod End Mount Type:

Cross-Tube

Rod Pin Size:

1.25″

Rod Mount Width:

2.125″

Extend Port/Plunger:

-10 JIC 90D

Retract Port/Plunger:

-10 JIC 90D

Old OEM PNs:

6530912, 6530921, 6539078, 6539145, 6539147, 6586905, 6804692

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

Limited Warranty

Many products available through Hydraulic Cylinders Inc. are warranted by their individual manufacturers.

  • Disassembling parts voids warranties.
  • Returns found to be due to misuse or misapplication are not covered.

Hydraulic Cylinders Inc. does not warrant or provide engineering advice as to the fitness and purpose of any product for any customer’s application of use. Hydraulic Cylinders Inc. is not responsible for determining the applicability of any product for use, including any product purchased from Hydraulic Cylinders Inc. under all circumstances and regardless of any presale statements made by customers as to the anticipated use of any product. It is the customer’s responsibility to rely solely on its own engineers or retained consultants in regards to whether any product purchased from Hydraulic Cylinders Inc. meets any and all federal, state, or local rule, regulation, standard, or need, use and applicability.
