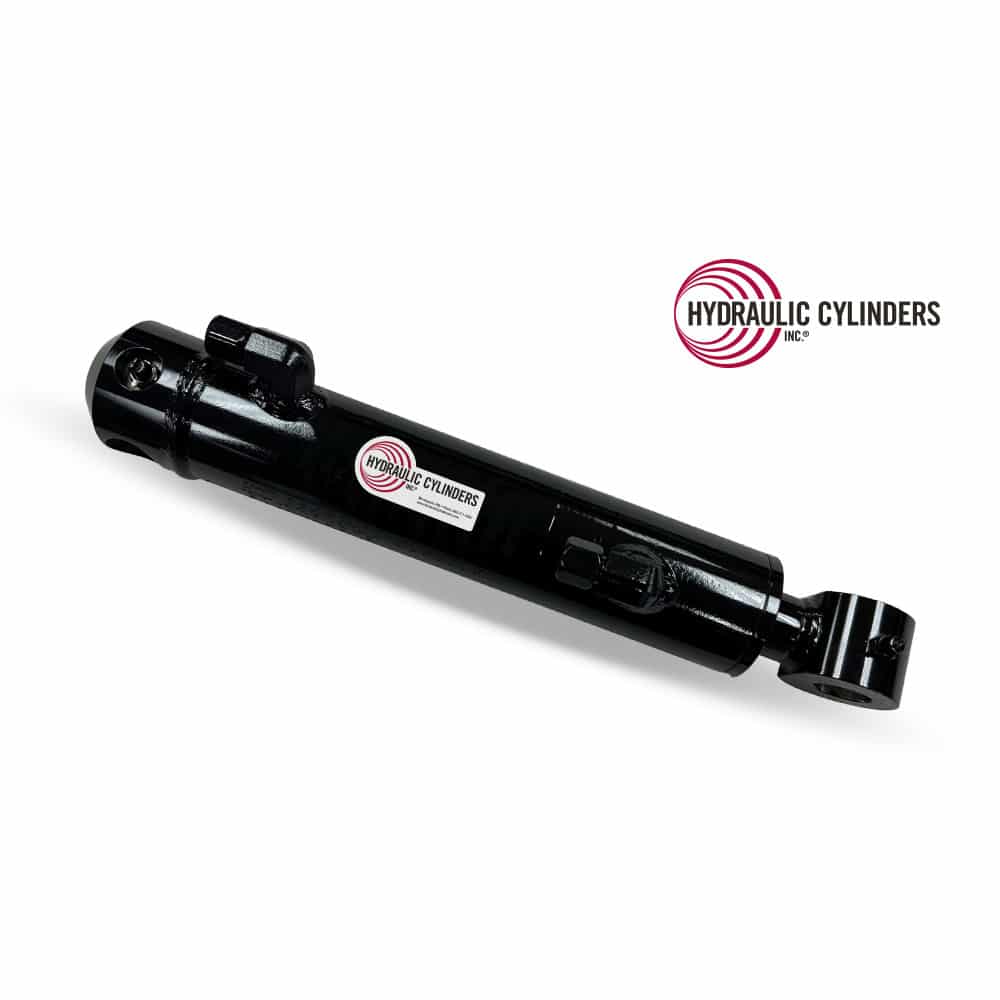

Replacement Hydraulic Grapple Cylinder for Bobcat (PN: 7136459) 36″ and 46″ Root & Industrial Grapplers

Replaces Bobcat 36" & 48" Root Grapple Cylinder

$995.00

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for 1989996394

Categories Attachments & Implements, Grapple, Replacement Welded Rod Hydraulic Cylinders, Skid Steer Backhoe Attachment, Skid Steer/Compact Track Loader
Fits Manufacturer Bobcat Hydraulic Cylinders
Models Bobcat Industrial Grapple, Bobcat Root Grapple 36 Inch, Bobcat Root Grapple 46 Inch
Function Grapple
Types Grapple, Skid Steer/Compact Track Loader
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU 1989996394
Weight 19 lbs
Bore

2.00″
Rod

1.25″
Stroke

6.00″
Closed

13.375″
Open Extended Length

19.375″
Operating Pressure (PSI)

3000
Base End Mount Type

Drilled Thru Base
Base Pin Size

1.00″
Base Mount Width

2.50″
Rod End Mount Type

Cross-Tube
Rod Pin Size

1.00″
Rod Mount Width

1.563″
Extend Port/Plunger

-6 JIC 90D
Retract Port/Plunger

-6 JIC 90D

Description

Engineered for the Bobcat 36″ Root Grapple, Bobcat 46″ Root Grapple, and Bobcat Industrial Grappler, this heavy-duty steel grapple cylinder replaces OEM Part Number 7136459 with exceptional reliability. It guarantees optimal functionality and extended service life. Made in the USA, this cylinder provides long-term durability and consistent operation in demanding conditions.

Bore:

2.00″

Rod:

1.25″

Stroke:

6.00″

Closed:

13.375″

Open Extended Length:

19.375″

Operating Pressure (PSI):

3000

Base End Mount Type:

Drilled Thru Base

Base Pin Size:

1.00″

Base Mount Width:

2.50″

Rod End Mount Type:

Cross-Tube

Rod Pin Size:

1.00″

Rod Mount Width:

1.563″

Extend Port/Plunger:

-6 JIC 90D

Retract Port/Plunger:

-6 JIC 90D
