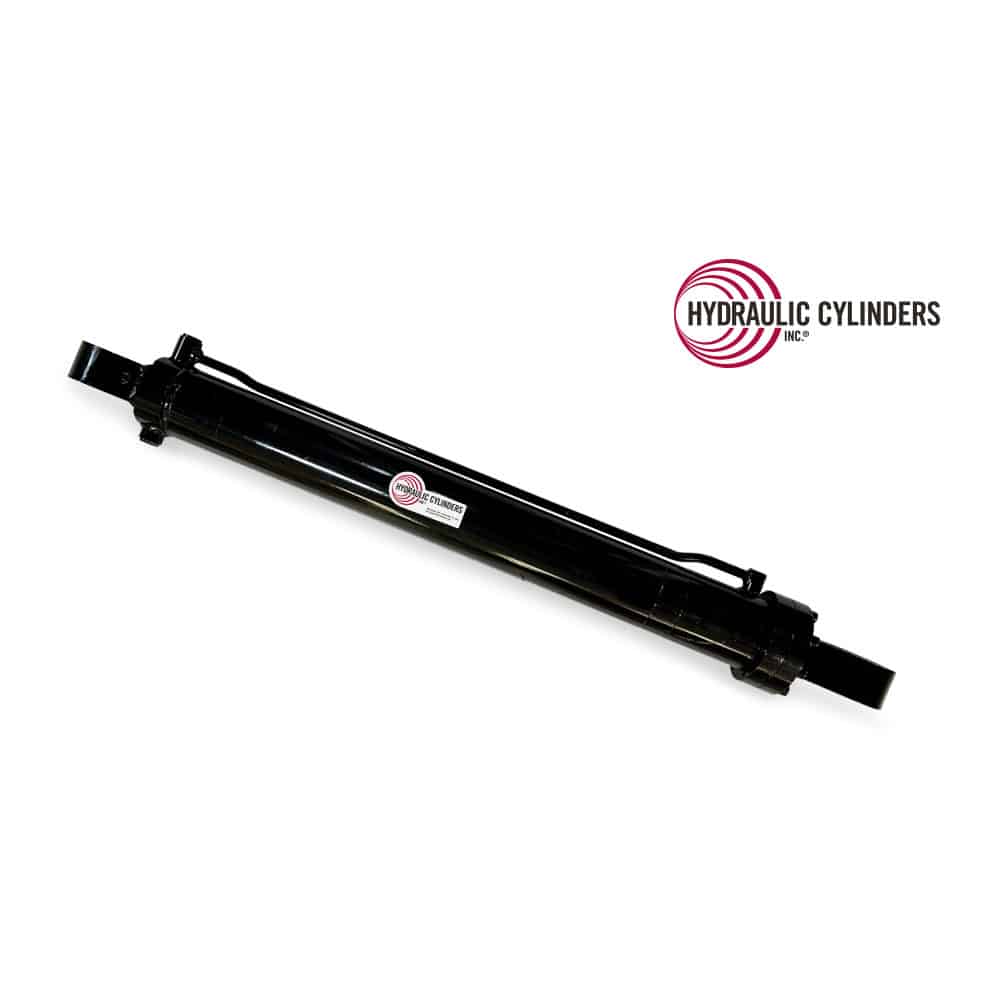

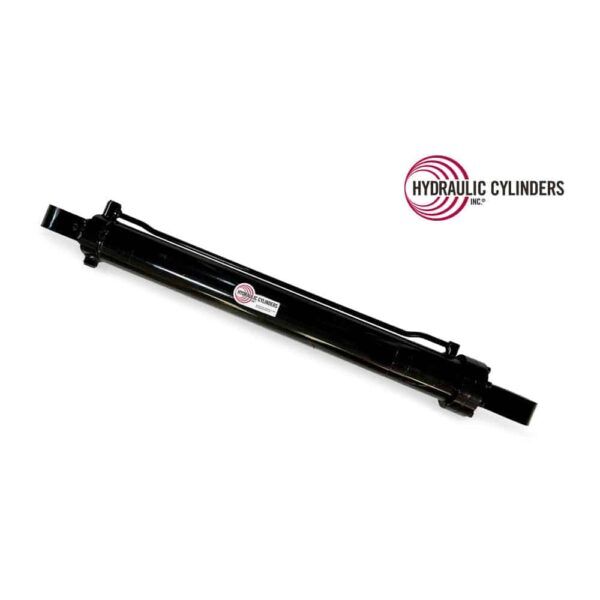

Replacement Thumb Bucket Cylinder for John Deere and Hitachi (PN: AT383236) Excavator Models 120D-450D Series, ZX Series
$3,750.00
Specifications for 2029216274
| SKU | 2029216274 |
|---|---|
| Weight | 200 lbs |
| Bore | 4.00″ |
|---|---|
| Rod | 2.500″ |
| Stroke | 35.00″ |
| Closed | 51.00″ |
| Open Extended Length | 86.00″ |
| Operating Pressure (PSI) | 3000 |
| Base End Mount Type | Spherical Bearing |
| Base Pin Size | 2.50″ |
| Base Mount Width | 2.50″ |
| Rod End Mount Type | Spherical Bearing |
| Rod Pin Size | 2.50″ |
| Rod Mount Width | 2.50″ |
| Extend Port/Plunger | -12 SAE ORB |
| Retract Port/Plunger | -12 SAE ORB |
Description
This replacement hydraulic thumb cylinder is compatible with Hitachi ZX120–245 series and John Deere 120–450 series excavators. As a direct replacement for OEM Part Number AT383236, it delivers reliable performance and smooth operation. Engineered to meet or exceed OEM specifications, this cylinder ensures dependable functionality and long-lasting durability under demanding conditions.
4.00″
2.500″
35.00″
51.00″
86.00″
3000
Spherical Bearing
2.50″
2.50″
Spherical Bearing
2.50″
2.50″
-12 SAE ORB
-12 SAE ORB
Returning Merchandise
New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email sales@hydrauliccylindersinc.com to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.
Limited Warranty
Many products available through Hydraulic Cylinders Inc. are warranted by their individual manufacturers.
- Disassembling parts voids warranties.
- Returns found to be due to misuse or misapplication are not covered.
Hydraulic Cylinders Inc. does not warrant or provide engineering advice as to the fitness and purpose of any product for any customer’s application of use. Hydraulic Cylinders Inc. is not responsible for determining the applicability of any product for use, including any product purchased from Hydraulic Cylinders Inc. under all circumstances and regardless of any presale statements made by customers as to the anticipated use of any product. It is the customer’s responsibility to rely solely on its own engineers or retained consultants in regards to whether any product purchased from Hydraulic Cylinders Inc. meets any and all federal, state, or local rule, regulation, standard, or need, use and applicability.
