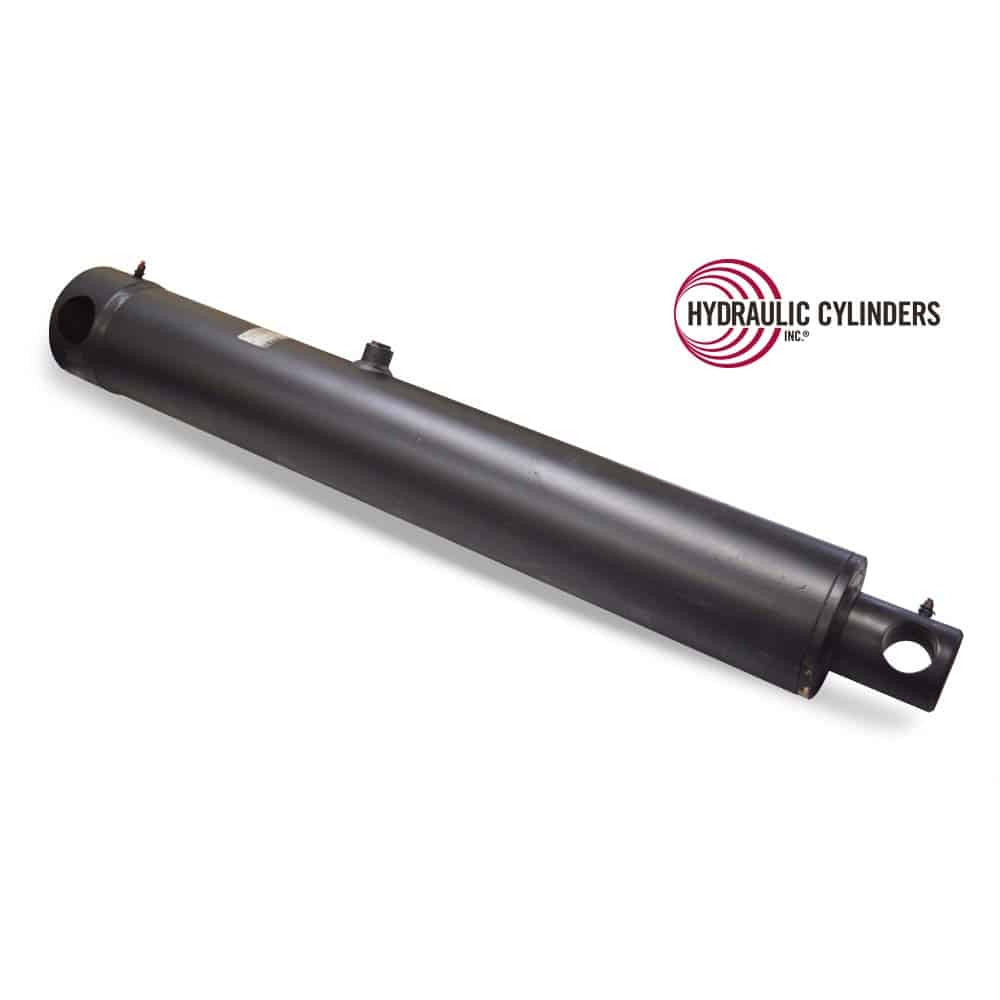

S42DB-8-51 (Commercial / Parker) Replacement SAT Dump Hoist Cylinders

$1,964.00

Specifications for 3771012054

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Manufacturer Commercial/Parker
Function Dump Hoist / Body Raise / Tipping
Type Dump
Features Single-Acting Telescopic Hydraulic Cylinders (SAT)
SKU 3771012054
Weight 155 lbs
Base End Mount Type

Cross-Tube

Base Mount Width

5.00″

Base Pin Size

2.00″

Closed

33.87″

Open Extended Length

84.87″

Retract Port/Plunger

.50" NPT

Rod End Mount Type

Drilled Thru Rod

Rod Mount Width

2.62″

Rod Pin Size

1.50″

Tele Largest Stage OD

4″

Telescopic Number of Stages

2

Telescopic Stroke

51″

Description

The following cylinders are compatible replacements for replacement part number 3771012054.

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
3771012054 3771012054 Commercial / Parker American Truck Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3781012001 3771012054 Commercial / Parker American Truck Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3781012001.72 3771012054 Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
42-21-53 3771012054 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
42-75-50 3771012054 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
4250C 3771012054 Marion / Farnsworth Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
M42DB-50 3771012054 Marion / Farnsworth Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
M42DB-50S 3771012054 Marion / Farnsworth American Truck Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S42DB-5-51 3771012054 Commercial / Parker American Truck Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S42DB-8-51 3771012054 Commercial / Parker American Truck Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
SHC-M42DB-50 3771012054 Hercules Sealing Products, Hercules Bulldog Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
