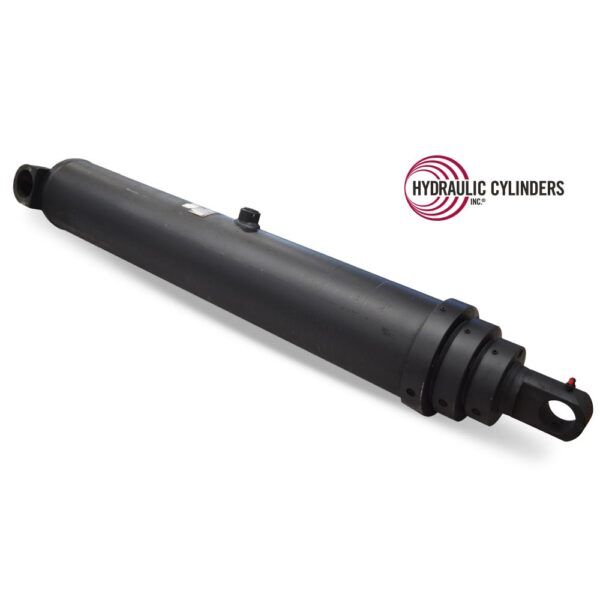

S53DC-68-105 (Commercial / Parker) Replacement SAT Dump Trailer Cylinders

$2,292.00

Specifications for 3771513176

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Manufacturers Commercial/Parker, Heil
Function Dump Hoist / Body Raise / Tipping
Type Dump
Features Single-Acting Telescopic Hydraulic Cylinders (SAT)
SKU 3771513176
Weight 235 lbs
Base End Mount Type

Cross-Tube

Base Mount Width

7.75″

Base Pin Size

2.00″

Closed

48.5″

Extend Port/Plunger

-16 SAE ORB 90D

Open Extended Length

153.5″

Rod End Mount Type

Drilled Thru Lug

Rod Mount Width

1.50″

Rod Pin Size

1.75″

Tele Largest Stage OD

5″

Telescopic Number of Stages

3

Telescopic Stroke

105″

Description

The following cylinders are compatible replacements for replacement part number 3771513176.

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
001-1766 3771513176 Heil Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
001-3141 3771513176 Heil Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
001-3484 3771513176 Heil Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
001-3888 3771513176 Heil Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
001-3984 3771513176 Heil Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
001-4138 3771513176 Heil Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
001-6711 3771513176 Heil Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
0014138 3771513176 TBEI, Heil TBEI, Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-1766 3771513176 Heil Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-3141 3771513176 Heil Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-3484 3771513176 Heil Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-3888 3771513176 Heil Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-3984 3771513176 Heil Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-4138 3771513176 Heil Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-6711 3771513176 Heil Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1251997 3771513176 TBEI, Heil TBEI, Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
246-7475 3771513176 Nexus / Caterpillar Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30252-53-105 3771513176 Hyco Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771513044 3771513176 Commercial / Parker Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771513090 3771513176 Commercial / Parker Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771513122 3771513176 Commercial / Parker Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771513176 3771513176 Commercial / Parker Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
53-4459-105 3771513176 Custom Hoist Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
53-4559-105 3771513176 Custom Hoist Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
53-459-105 3771513176 Custom Hoist Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
53-59-105 3771513176 Custom Hoist Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
53-759-105 3771513176 Custom Hoist Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
53-904-110 3771513176 Custom Hoist Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
53-905-110 3771513176 Custom Hoist Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70252-53-105 3771513176 Hyco Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
71040-53-107 3771513176 Hyco TBEI, Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
HPT53110 3771513176 Hercules Sealing Products, Hercules Bulldog Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S53DC-15-105 3771513176 Commercial / Parker Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S53DC-15G-105 3771513176 Commercial / Parker Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S53DC-6-105 3771513176 Commercial / Parker Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S53DC-68-105 3771513176 Commercial / Parker Heil HPT53-110 Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
