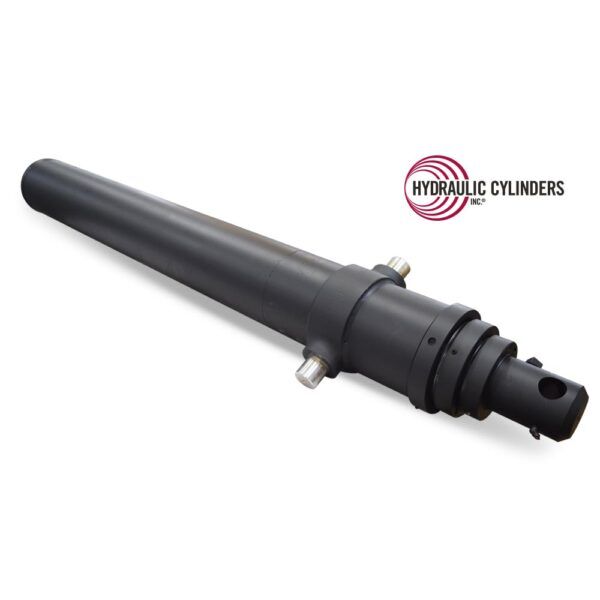

S63MB-8-160 (Commercial / Parker) Replacement SAT Dump Hoist Cylinders

$3,991.00

Specifications for 3771413201

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Manufacturer Commercial/Parker
Function Dump Hoist / Body Raise / Tipping
Type Dump
Features Single-Acting Telescopic Hydraulic Cylinders (SAT), Trunnion
SKU 3771413201
Weight 350 lbs
Base End Mount Type

Trunnion

Closed

66.25″

Extend Port/Plunger

1.00" NPT

Open Extended Length

226.25″

Rod Clevis Gap

3.62

Rod End Mount Type

Drilled Thru Rod

Rod Mount Width

3.62″

Rod Pin Size

1.50″

Tele Largest Stage OD

6″

Telescopic Number of Stages

3

Telescopic Stroke

160″

Trunnion Closed

14.37

Trunnion Open

174.38

Trunnion Pin Dia

1.75

Trunnion Pin Length

1.69

Trunnion Width

12.38

Description

The following cylinders are compatible replacements for replacement part number 3771413201.

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
001-6184 3771413201 Heil Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1-6184 3771413201 Heil Heil Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
246-7337 3771413201 Nexus / Caterpillar Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30050-63-160T 3771413201 Hyco Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413201 3771413201 Commercial / Parker Workman Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3771413298 3771413201 Commercial / Parker Ox Bodies Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-182-160 3771413201 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-4-160 3771413201 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-4582-160 3771413201 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-582-160 3771413201 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
63-882-160 3771413201 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70050-63-160T 3771413201 Hyco Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70950-63-160T 3771413201 Hyco Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63MB-13-160 3771413201 Commercial / Parker Ox Bodies Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S63MB-8-160 3771413201 Commercial / Parker Workman Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
