S74MB-3-154 (Commercial / Parker) Tesco Williamsen Replacement SAT Dump Hoist Cylinders

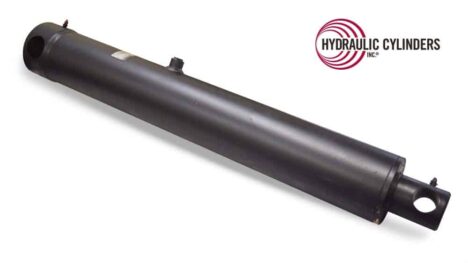

  • Replacement SAT Dump Hoist Cylinder
  • Replacement SAT Dump Hoist Cylinder

$4,928.00

Specifications for 3772514058

Categories Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders
Manufacturer Commercial/Parker
Function Dump Hoist / Body Raise / Tipping
Type Dump
Features Single-Acting Telescopic Hydraulic Cylinders (SAT), Trunnion
SKU 3772514058
Weight 450 lbs
Base End Mount Type

Trunnion

Closed

55.62″

Extend Port/Plunger

1.00" NPT

Open Extended Length

209.62″

Rod End Mount Type

Drilled Thru Rod

Rod Mount Width

3.62″

Rod Pin Size

1.50″

Tele Largest Stage OD

7″

Telescopic Number of Stages

4

Telescopic Stroke

154″

Trunnion Closed

14.37

Trunnion Open

168.38

Trunnion Pin Dia

1.75

Trunnion Pin Length

1.63

Trunnion Width

12.25

Description

The following cylinders are compatible replacements for replacement part number 3772514058.

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
10051-74-154T 3772514058 Hyco Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1139A-7654-150 3772514058 Hyco Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
1139A-7654-154 3772514058 Hyco Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
128007 3772514058 Hercules Sealing Products, Hercules Bulldog Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30058-74-154T 3772514058 Hyco Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
30595-74-154 3772514058 Hyco Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
327-01-107 3772514058 Tesco Williamsen Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3772514026 3772514058 Commercial / Parker Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3772514058 3772514058 Commercial / Parker Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
3772514080 3772514058 Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70058-74-154T 3772514058 Hyco Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
70595-74-154T 3772514058 Hyco Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
74-107-150 3772514058 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
74-108-154 3772514058 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
74-4508-154 3772514058 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
74-46-150 3772514058 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
74-46-154 3772514058 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
74-508-154 3772514058 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
74-535-154 3772514058 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
74-65-154 3772514058 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
74-71-154 3772514058 Custom Hoist Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
74-808-154 3772514058 Custom Hoist Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
74154VI 3772514058 Tesco Williamsen Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S74MB-2-154 3772514058 Commercial / Parker Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S74MB-3-154 3772514058 Commercial / Parker Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
S74MB-3G-154 3772514058 Commercial / Parker Miscellaneous Manufacturers Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
WHP-74154VI 3772514058 Tesco Williamsen Tesco Williamsen Dump Truck Equipment Commercial / Parker SAT Dump Hoist, Body Raise, Tipping
