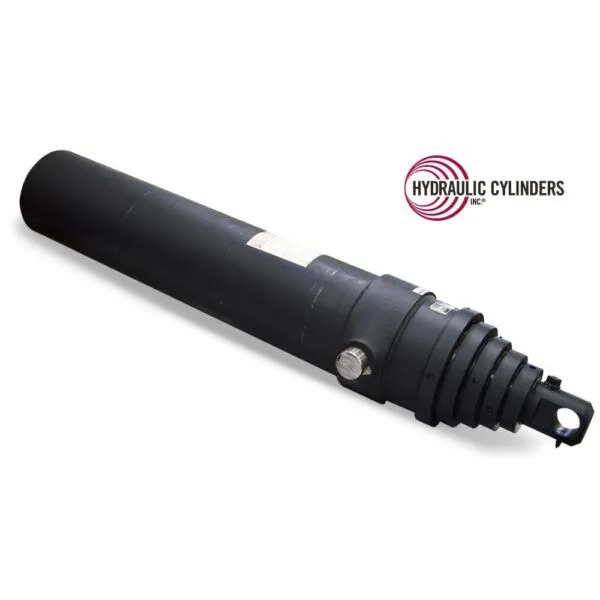

S74MB-5-167 (Commercial Parker) SAT Cylinders Assembly
$5,169.00
Specifications for 3772514111
Categories | Dump (Telescopic), Dump Trucks/Trailers/Hoists, Replacement Telescopic Hydraulic Cylinders |
---|---|
Manufacturer | Commercial/Parker |
Function | Dump Hoist / Body Raise / Tipping |
Type | Dump |
Features | Single-Acting Telescopic Hydraulic Cylinders (SAT), Trunnion |
SKU | 3772514111 |
---|---|
Weight | 455 lbs |
Base End Mount Type | Trunnion |
Closed | 58.37″ |
Extend Port/Plunger | -16 SAE ORB |
Open Extended Length | 225.37″ |
Rod End Mount Type | Drilled Thru Rod |
Rod Mount Width | 3.62″ |
Rod Pin Size | 2.00″ |
Tele Largest Stage OD | 7″ |
Telescopic Number of Stages | 4 |
Telescopic Stroke | 167″ |
Trunnion Closed | 13 |
Trunnion Open | 180.00 |
Trunnion Pin Dia | 1.75 |
Trunnion Pin Length | 1.63 |
Trunnion Width | 12.25 |
Description
S74MB-5-167 3772514111 SAT dump hoist hydraulic cylinder assembly replacements feature a trunnion mount, 167-in. telescopic stroke, and 4 telescopic stages.
Compatible Replacement Cylinders for #3772514111
Reference Part Number | HCI Part Number | Reference Name | Equipment Manufacturer | Equipment Model | Equipment Type | Industry | Replacement Name | Cylinder Type | Cylinder Function |
---|---|---|---|---|---|---|---|---|---|
327-01-127 | 3772514111 | Tesco Williamsen | Tesco Williamsen | — | Dump | Truck Equipment | Commercial / Parker | SAT | Dump Hoist, Body Raise, Tipping |
3772514111 | 3772514111 | Commercial / Parker | Reliance Trailer | — | Dump | Truck Equipment | Commercial / Parker | SAT | Dump Hoist, Body Raise, Tipping |
74-104-167 | 3772514111 | Custom Hoist | Tesco Williamsen | — | Dump | Truck Equipment | Commercial / Parker | SAT | Dump Hoist, Body Raise, Tipping |
74-104-167 | 3772514111 | Custom Hoist | Reliance Trailer | — | Dump | Truck Equipment | Commercial / Parker | SAT | Dump Hoist, Body Raise, Tipping |
74-36-167 | 3772514111 | Custom Hoist | Miscellaneous Manufacturers | — | Dump | Truck Equipment | Commercial / Parker | SAT | Dump Hoist, Body Raise, Tipping |
74-4504-167 | 3772514111 | Custom Hoist | Tesco Williamsen | — | Dump | Truck Equipment | Commercial / Parker | SAT | Dump Hoist, Body Raise, Tipping |
74-504-167 | 3772514111 | Custom Hoist | Tesco Williamsen | — | Dump | Truck Equipment | Commercial / Parker | SAT | Dump Hoist, Body Raise, Tipping |
74-504-167 | 3772514111 | Custom Hoist | Reliance Trailer | — | Dump | Truck Equipment | Commercial / Parker | SAT | Dump Hoist, Body Raise, Tipping |
74-804-167 | 3772514111 | Custom Hoist | Tesco Williamsen | — | Dump | Truck Equipment | Commercial / Parker | SAT | Dump Hoist, Body Raise, Tipping |
74-804-167 | 3772514111 | Custom Hoist | Reliance Trailer | — | Dump | Truck Equipment | Commercial / Parker | SAT | Dump Hoist, Body Raise, Tipping |
S74MB-5-167 | 3772514111 | Commercial / Parker | Reliance Trailer | — | Dump | Truck Equipment | Commercial / Parker | SAT | Dump Hoist, Body Raise, Tipping |
