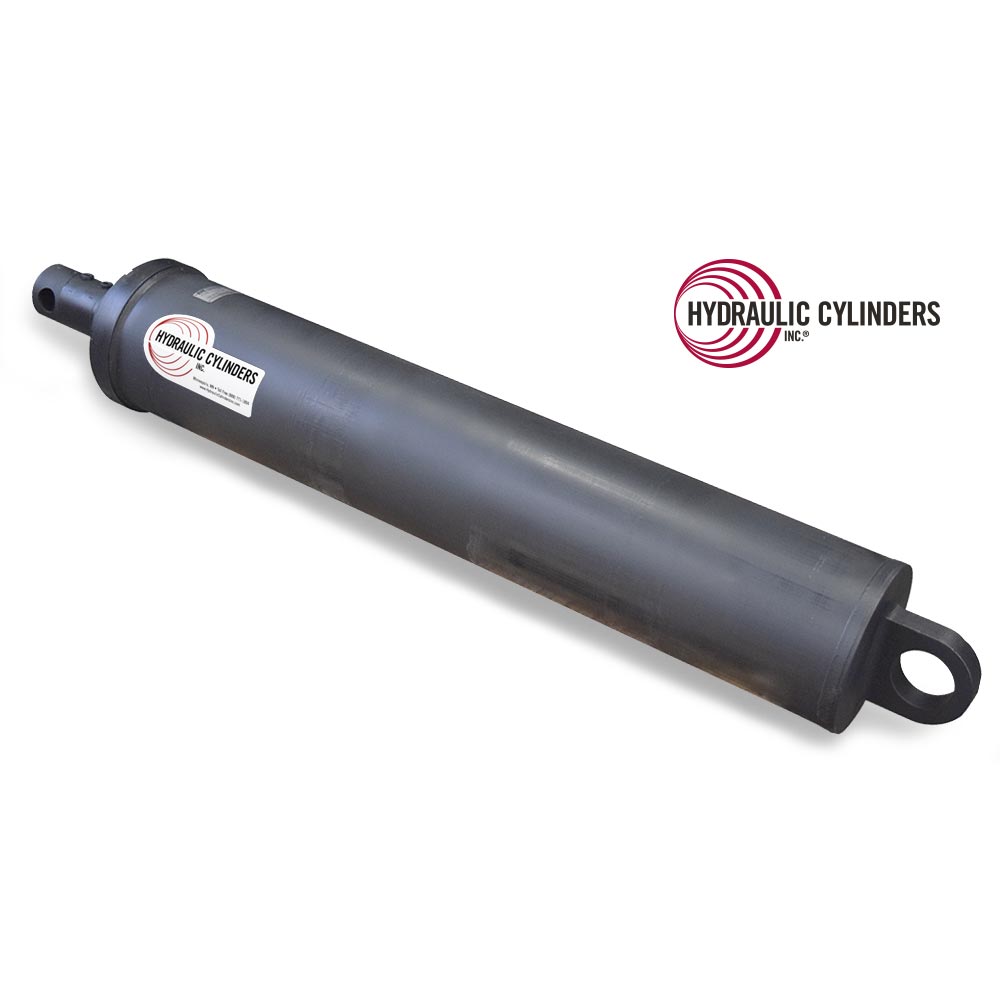

SD83CB-16-117 (Commercial / Parker) Replacement DAT Mast Raising Cylinders

Call For Availabilty

Specifications for 3772933016

Categories Drill Rig, Replacement Telescopic Hydraulic Cylinders
Manufacturers Bronco, Cabot, Commercial/Parker, Franks, Ingersoll Rand, National Oilwell Varco, OilTech Group Inc
Function Mast Raising
Type Drill Rig
Features Double-Acting Telescopic Hydraulic Cylinders (DAT)
SKU 3772933016
Weight 440 lbs
Base End Mount Type

Drilled Thru Lug

Base Mount Width

1.50″

Base Pin Size

3.18″

Closed

59.75″

Extend Port/Plunger

.50" NPT

Open Extended Length

176.75″

Retract Port/Plunger

.50" NPT

Rod End Mount Type

Drilled Thru Rod

Rod Mount Width

3.62″

Rod Pin Size

1.50″

Tele Largest Stage OD

8″

Telescopic Number of Stages

3

Telescopic Stroke

117″

Description

3772933016 SD83CB-16-117 replacement double-acting telescopic cylinders fulfill mast raising functions & feature chrome sleeves with a Skip A sleeve design.



Compatible Replacement Cylinders for #3772933016

Reference Part Number HCI Part Number Reference Name Equipment Manufacturer Equipment Model Equipment Type Industry Replacement Name Cylinder Type Cylinder Function
3772933004 3772933016 Commercial / Parker IRI International / National Oilwell Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
3772933016 3772933016 Commercial / Parker Franks Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
3773033004 3772933016 Commercial / Parker IRI International / National Oilwell Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
3773033011 3772933016 Commercial / Parker IRI International / National Oilwell Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
3773033036 3772933016 Commercial / Parker Ingersoll Rand IRI-750 Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
3773033040 3772933016 Commercial / Parker Ingersoll Rand Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
50072-813-117 3772933016 Hyco National Oilwell Varco Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
937646 3772933016 National Oilwell Varco Ingersoll Rand / National Oilwell Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
937646 3772933016 National Oilwell Varco IRI International / National Oilwell Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
937646 3772933016 National Oilwell Varco National Oilwell Varco Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-13-117 3772933016 Commercial / Parker Ingersoll Rand IRI-750 Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-13-117 3772933016 Commercial / Parker Bronco Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-13-117 3772933016 Commercial / Parker Cabot Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-13-117 3772933016 Commercial / Parker Franks Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-13-117 3772933016 Commercial / Parker National Oilwell Varco Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-15-117 3772933016 Commercial / Parker Ingersoll Rand Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-15-117 3772933016 Commercial / Parker Bronco Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-15-117 3772933016 Commercial / Parker Cabot Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-15-117 3772933016 Commercial / Parker Franks Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-15-117 3772933016 Commercial / Parker IRI International IRI-750 Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-15-117 3772933016 Commercial / Parker National Oilwell Varco Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-16-117 3772933016 Commercial / Parker Franks Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-16-117 3772933016 Commercial / Parker IRI International IRI-750 Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-16-117 3772933016 Commercial / Parker National Oilwell Varco Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-5-117 3772933016 Commercial / Parker OilTech Group Inc 029303335 Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-5-117 3772933016 Commercial / Parker OilTech Group Inc Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-6-117 3772933016 Commercial / Parker IRI International Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-6-117 3772933016 Commercial / Parker National Oilwell Varco Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-7-117 3772933016 Commercial / Parker IRI International / National Oilwell Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
SD83CB-7-117 3772933016 Commercial / Parker National Oilwell Varco Oil Field Drill Rig Oil & Gas Commercial / Parker DAT Mast Raising
