TH Heads

Name: TH Heads
Brand: Hydraulic Cylinders, Inc.
SKU: 169443
Price: 69 USD
Availability: instock
Rating: 5 (1 reviews)

$90.00 – $680.00

Specifications for

Categories	Hydraulic Cylinder Heads, Replacement Hydraulic Cylinder Component Parts & Accessories, TH Head

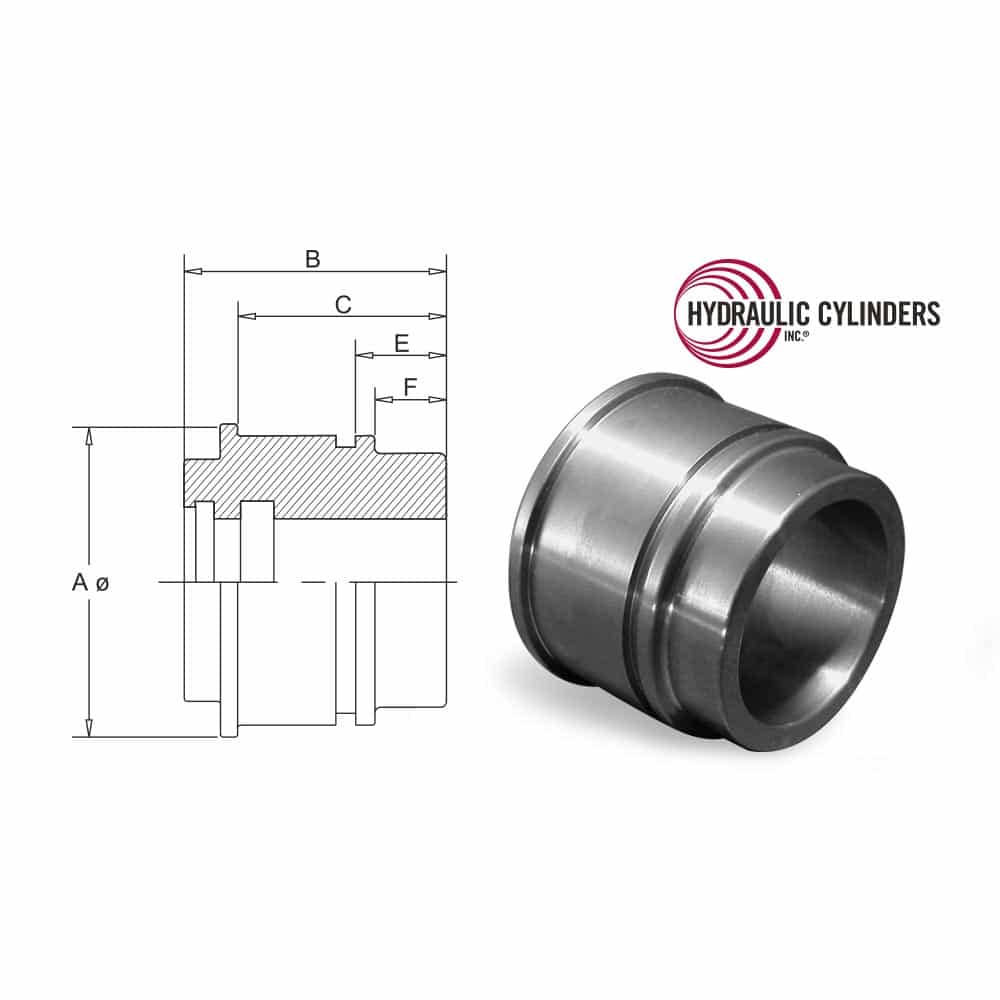

SKU	Bore +0.003"/–0.003"	Rod +0.003"/–0.003"	A	B	C	E	F	Seal Kit SKU	List Price
H70154	2.000	1.000	2.25	2.38	1.93	0.81	0.62	SKH70154	$90.00
H70155	2.000	1.125	2.25	2.38	1.93	0.81	0.62	SKH70155	$115.00
H70156	2.000	1.250	2.25	2.38	1.93	0.81	0.62	SKH70156	$100.00
H70157	2.500	1.125	2.75	2.38	1.93	0.81	0.62	SKH70157	$120.00
H70076	2.500	1.250	2.75	2.38	1.93	0.81	0.62	SKH70076	$130.00
H70158	2.500	1.500	2.75	2.38	1.93	0.81	0.62	SKH70158	$175.00
H70462	2.500	1.750	2.75	2.38	2.19	0.81	0.62	SKH70462	$140.00
H70029	3.000	1.250	3.25	2.75	2.19	0.93	0.75	SKH70029	$150.00
H70011	3.000	1.500	3.25	2.75	2.19	0.93	0.75	SKH70011	$150.00
H70814	3.000	1.750	3.25	2.75	2.19	0.93	0.75	SKH70814	$140.00
H70012	3.000	2.000	3.25	2.75	2.56	0.93	0.69	SKH70012	$150.00
H70013	3.500	1.500	3.75	2.75	2.19	0.93	0.75	SKH70013	$150.00
H70504	3.500	1.750	3.75	2.75	2.19	0.93	0.75	SKH70504	$150.00
H70030	3.500	2.000	3.75	2.75	2.19	0.93	0.75	SKH70030	$150.00
H70031	3.500	2.500	3.75	2.75	2.56	0.93	0.75	SKH70031	$160.00
H70014	4.000	1.500	4.25	2.75	2.19	0.93	0.75	SKH70014	$160.00
H70488	4.000	1.750	4.25	2.75	2.19	0.93	0.75	SKH70488	$160.00
H70015	4.000	2.000	4.25	2.75	2.19	0.93	0.75	SKH70015	$160.00
H70032	4.000	2.500	4.25	2.75	2.19	0.93	0.75	SKH70032	$160.00
H70033	4.000	3.000	4.25	2.75	2.56	0.93	0.75	SKH70033	$160.00
H70276	4.500	2.000	4.75	2.75	2.19	0.93	0.75	SKH70276	$200.00
H70310	4.500	2.500	4.75	2.75	2.19	0.93	0.75	SKH70310	$200.00
H70377	4.500	3.000	4.75	2.75	2.19	0.93	0.75	SKH70377	$200.00
H70037	5.000	2.000	5.38	3.00	2.44	1.12	0.88	SKH70037	$225.00
H70038	5.000	2.500	5.38	3.00	2.44	1.12	0.88	SKH70038	$275.00
H70039	5.000	3.000	5.38	3.00	2.44	1.12	0.88	SKH70039	$240.00
H70153	5.500	2.000	5.88	3.00	2.44	1.12	0.88	SKH70153	$320.00
H70142	5.500	2.500	5.88	3.00	2.44	1.12	0.88	SKH70142	$320.00
H70143	5.500	3.000	5.88	3.00	2.44	1.12	0.88	SKH70143	$320.00
H70041	6.000	2.000	6.38	3.00	2.44	1.12	0.88	SKH70041	$325.00
H70042	6.000	2.500	6.38	3.00	2.44	1.12	0.88	SKH70042	$325.00
H70043	6.000	3.000	6.38	3.00	2.44	1.12	0.88	SKH70043	$350.00
H70180	7.000	2.500	7.50	4.00	3.12	1.75	1.50	SKH70180	$520.00
H70176	7.000	3.000	7.50	4.00	3.12	1.75	1.50	SKH70176	$520.00
H70186	7.000	3.500	7.50	4.00	3.12	1.75	1.50	SKH70186	$515.00
H70133	8.000	3.000	8.50	4.00	3.12	1.75	1.50	SKH70133	$675.00
H70195	8.000	3.500	8.50	4.00	3.12	1.75	1.50	SKH70195	$680.00
H70217	8.000	4.000	8.50	4.00	3.12	1.75	1.50	SKH70217	$680.00

Categories

Common Functions

Featured Products

Categories

Common Functions

Featured Products

Categories

Top Selling

Featured Seal Kits

Categories

Best Selling

Featured Tools

TH Heads

Specifications for

TH Head, 2.000" Bore, 1.000" Rod quantity	TH Head, 2.000" Bore, 1.000" Rod	$90.00 (SKU: H70154)
TH Head, 2.000" Bore, 1.125" Rod quantity	TH Head, 2.000" Bore, 1.125" Rod	$115.00 (SKU: H70155)
TH Head, 2.000" Bore, 1.250" Rod quantity	TH Head, 2.000" Bore, 1.250" Rod	$100.00 (SKU: H70156)
TH Head, 2.500" Bore, 1.125" Rod quantity	TH Head, 2.500" Bore, 1.125" Rod	$120.00 (SKU: H70157)
TH Head, 2.500" Bore, 1.250" Rod quantity	TH Head, 2.500" Bore, 1.250" Rod	$130.00 (SKU: H70076)
TH Head, 2.500" Bore, 1.500" Rod quantity	TH Head, 2.500" Bore, 1.500" Rod	$175.00 (SKU: H70158)
TH Head, 2.500" Bore, 1.750" Rod quantity	TH Head, 2.500" Bore, 1.750" Rod	$140.00 (SKU: H70462)
TH Head, 3.000" Bore, 1.250" Rod quantity	TH Head, 3.000" Bore, 1.250" Rod	$150.00 (SKU: H70029)
TH Head, 3.000" Bore, 1.500" Rod quantity	TH Head, 3.000" Bore, 1.500" Rod	$150.00 (SKU: H70011)
TH Head, 3.000" Bore, 1.750" Rod quantity	TH Head, 3.000" Bore, 1.750" Rod	$140.00 (SKU: H70814)
TH Head, 3.000" Bore, 2.000" Rod quantity	TH Head, 3.000" Bore, 2.000" Rod	$150.00 (SKU: H70012)
TH Head, 3.500" Bore, 1.500" Rod quantity	TH Head, 3.500" Bore, 1.500" Rod	$150.00 (SKU: H70013)
TH Head, 3.500" Bore, 1.750" Rod quantity	TH Head, 3.500" Bore, 1.750" Rod	$150.00 (SKU: H70504)
TH Head, 3.500" Bore, 2.000" Rod quantity	TH Head, 3.500" Bore, 2.000" Rod	$150.00 (SKU: H70030)
TH Head, 3.500" Bore, 2.500" Rod quantity	TH Head, 3.500" Bore, 2.500" Rod	$160.00 (SKU: H70031)
TH Head, 4.000" Bore, 1.500" Rod quantity	TH Head, 4.000" Bore, 1.500" Rod	$160.00 (SKU: H70014)
TH Head, 4.000" Bore, 1.750" Rod quantity	TH Head, 4.000" Bore, 1.750" Rod	$160.00 (SKU: H70488)
TH Head, 4.000" Bore, 2.000" Rod quantity	TH Head, 4.000" Bore, 2.000" Rod	$160.00 (SKU: H70015)
TH Head, 4.000" Bore, 2.500" Rod quantity	TH Head, 4.000" Bore, 2.500" Rod	$160.00 (SKU: H70032)
TH Head, 4.000" Bore, 3.000" Rod quantity	TH Head, 4.000" Bore, 3.000" Rod	$160.00 (SKU: H70033)
TH Head, 4.500" Bore, 2.000" Rod quantity	TH Head, 4.500" Bore, 2.000" Rod	$200.00 (SKU: H70276)
TH Head, 4.500" Bore, 2.500" Rod quantity	TH Head, 4.500" Bore, 2.500" Rod	$200.00 (SKU: H70310)
TH Head, 4.500" Bore, 3.000" Rod quantity	TH Head, 4.500" Bore, 3.000" Rod	$200.00 (SKU: H70377)
TH Head, 5.000" Bore, 2.000" Rod quantity	TH Head, 5.000" Bore, 2.000" Rod	$225.00 (SKU: H70037)
TH Head, 5.000" Bore, 2.500" Rod quantity	TH Head, 5.000" Bore, 2.500" Rod	$275.00 (SKU: H70038)
TH Head, 5.000" Bore, 3.000" Rod quantity	TH Head, 5.000" Bore, 3.000" Rod	$240.00 (SKU: H70039)
TH Head, 5.500" Bore, 2.000" Rod quantity	TH Head, 5.500" Bore, 2.000" Rod	$320.00 (SKU: H70153)
TH Head, 5.500" Bore, 2.500" Rod quantity	TH Head, 5.500" Bore, 2.500" Rod	$320.00 (SKU: H70142)
TH Head, 5.500" Bore, 3.000" Rod quantity	TH Head, 5.500" Bore, 3.000" Rod	$320.00 (SKU: H70143)
TH Head, 6.000" Bore, 2.000" Rod quantity	TH Head, 6.000" Bore, 2.000" Rod	$325.00 (SKU: H70041)
TH Head, 6.000" Bore, 2.500" Rod quantity	TH Head, 6.000" Bore, 2.500" Rod	$325.00 (SKU: H70042)
TH Head, 6.000" Bore, 3.000" Rod quantity	TH Head, 6.000" Bore, 3.000" Rod	$350.00 (SKU: H70043)
TH Head, 7.000" Bore, 2.500" Rod quantity	TH Head, 7.000" Bore, 2.500" Rod	$520.00 (SKU: H70180)
TH Head, 7.000" Bore, 3.000" Rod quantity	TH Head, 7.000" Bore, 3.000" Rod	$520.00 (SKU: H70176)
TH Head, 7.000" Bore, 3.500" Rod quantity	TH Head, 7.000" Bore, 3.500" Rod	$515.00 (SKU: H70186)
TH Head, 8.000" Bore, 3.000" Rod quantity	TH Head, 8.000" Bore, 3.000" Rod	$675.00 (SKU: H70133)
TH Head, 8.000" Bore, 3.500" Rod quantity	TH Head, 8.000" Bore, 3.500" Rod	$680.00 (SKU: H70195)
TH Head, 8.000" Bore, 4.000" Rod quantity	TH Head, 8.000" Bore, 4.000" Rod	$680.00 (SKU: H70217)
